July 2018 – Renewable energy course for university students in South Africa

The renewable energy course theory was cover during the first day

3D printed small wind turbine blades from the renewable energy lad of the NMU

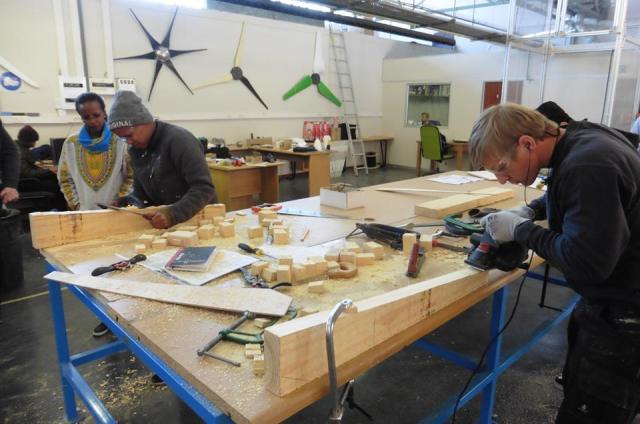

Carving the chord of the blades

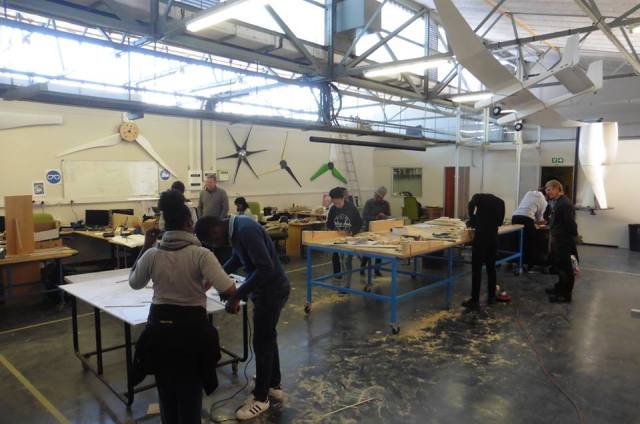

Overview of the renewable energy lab and workshop

Vertical axis wind turbine and posters at the lab

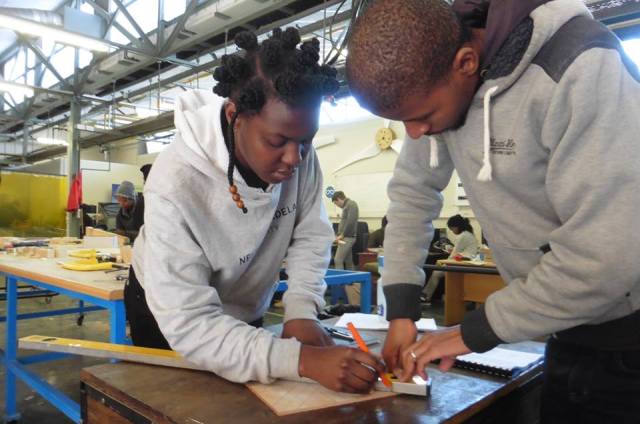

Drawing the magnet template

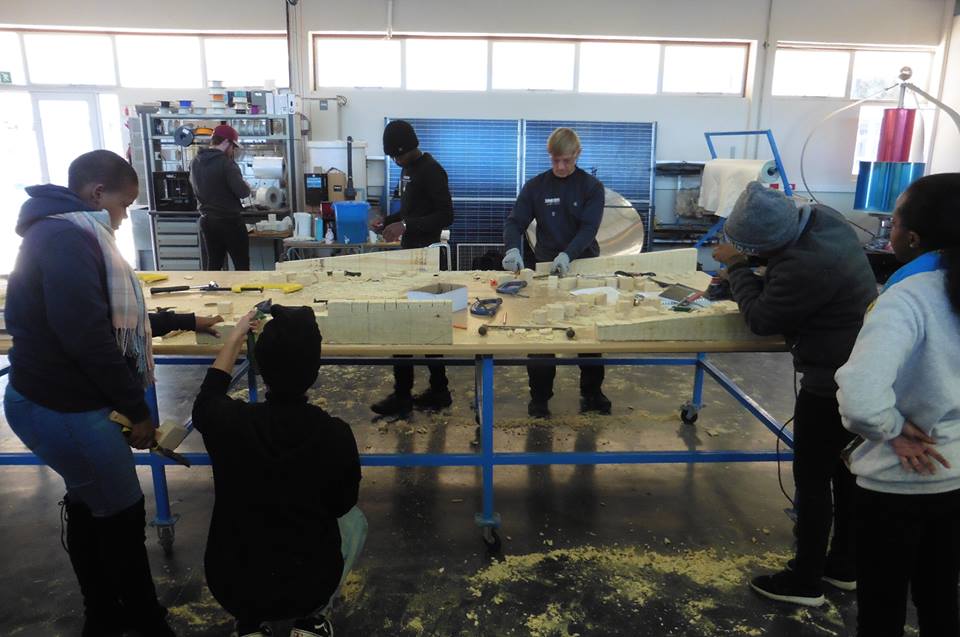

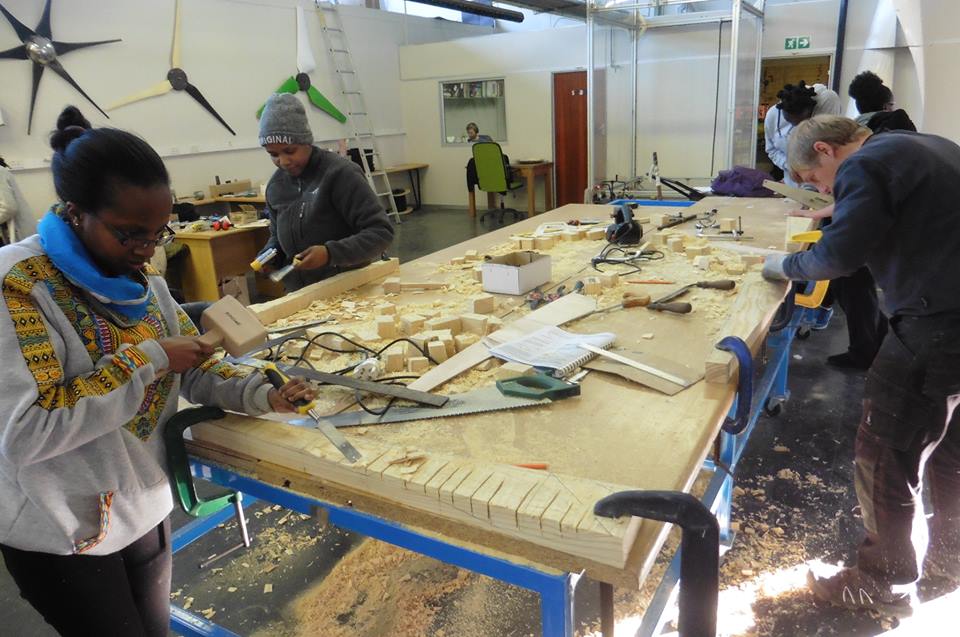

Overview of the wood work station

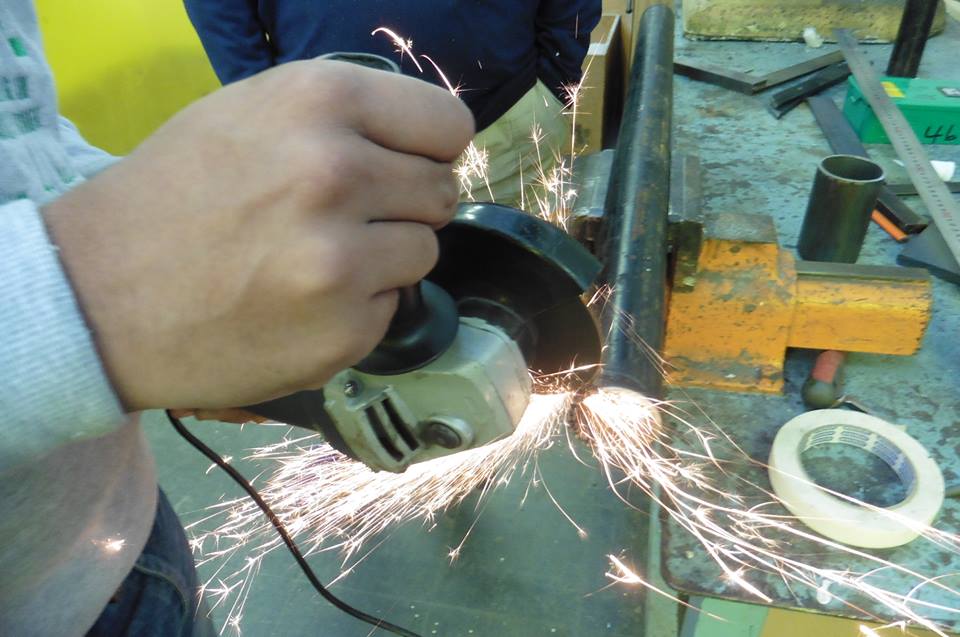

Cutting metal pieces for the frame with the angle grinder

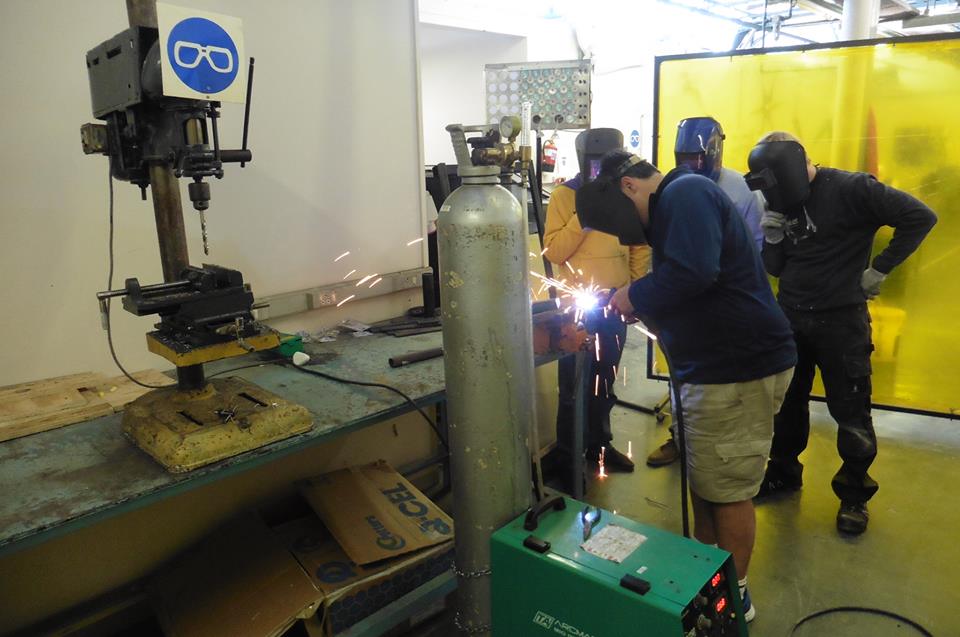

Practicing some welding

Moving to the second step of the blades, carving the pitch

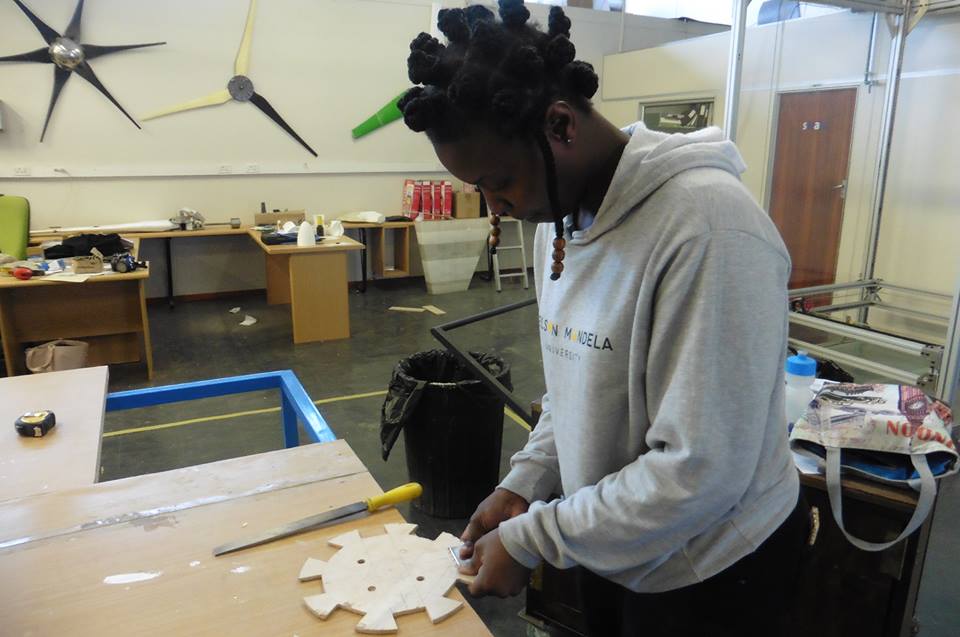

Finishing touches at the magnet positioning template

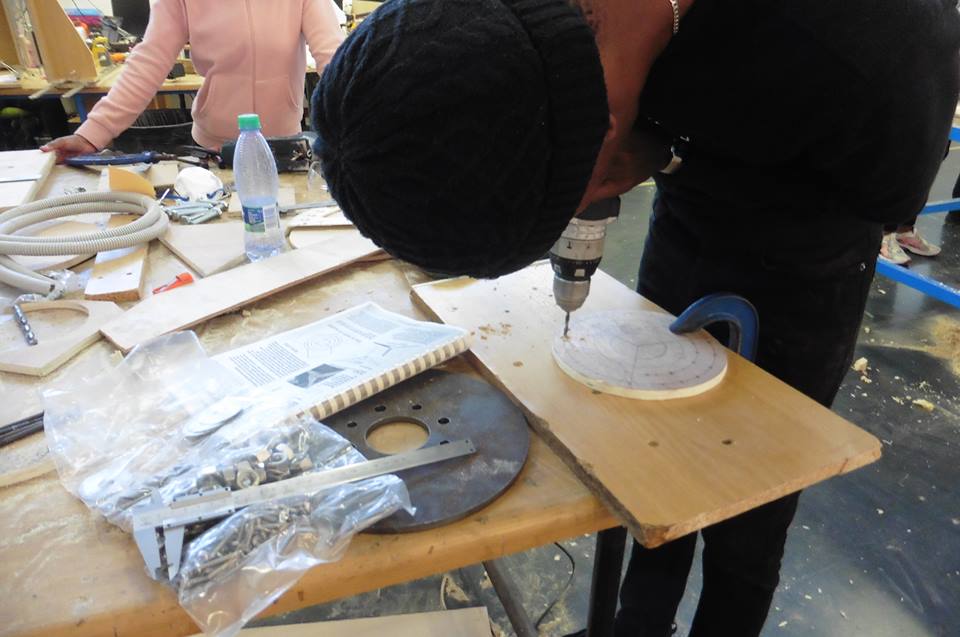

Drawing the drilling the rotor hub

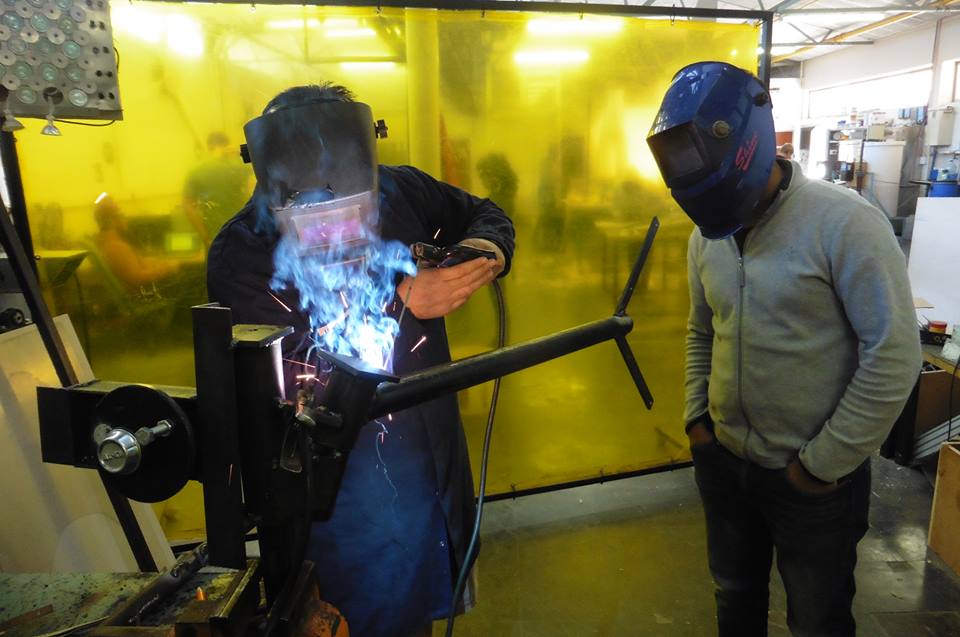

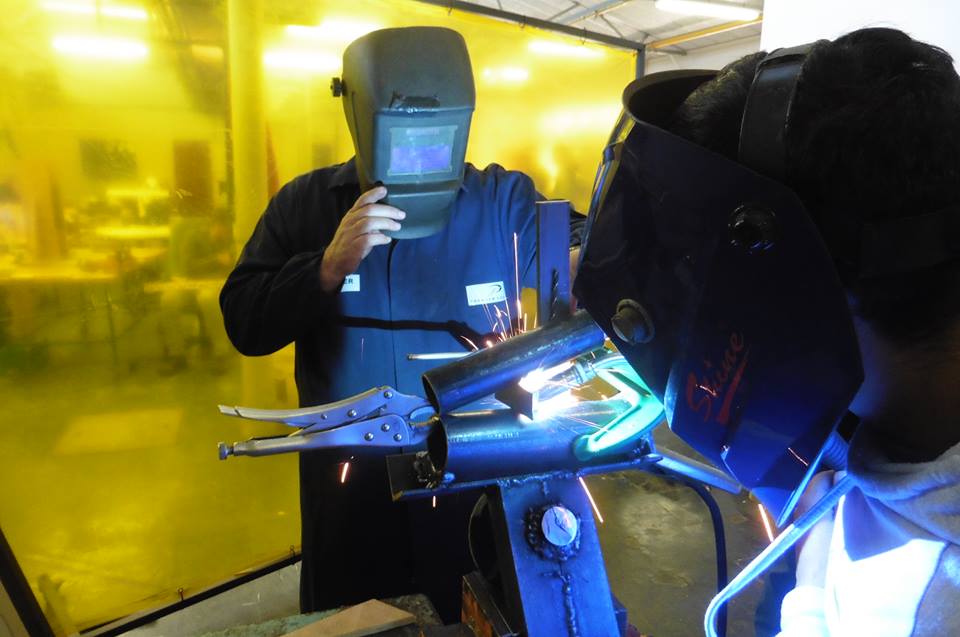

Welding the furling hinge on the yaw pipe

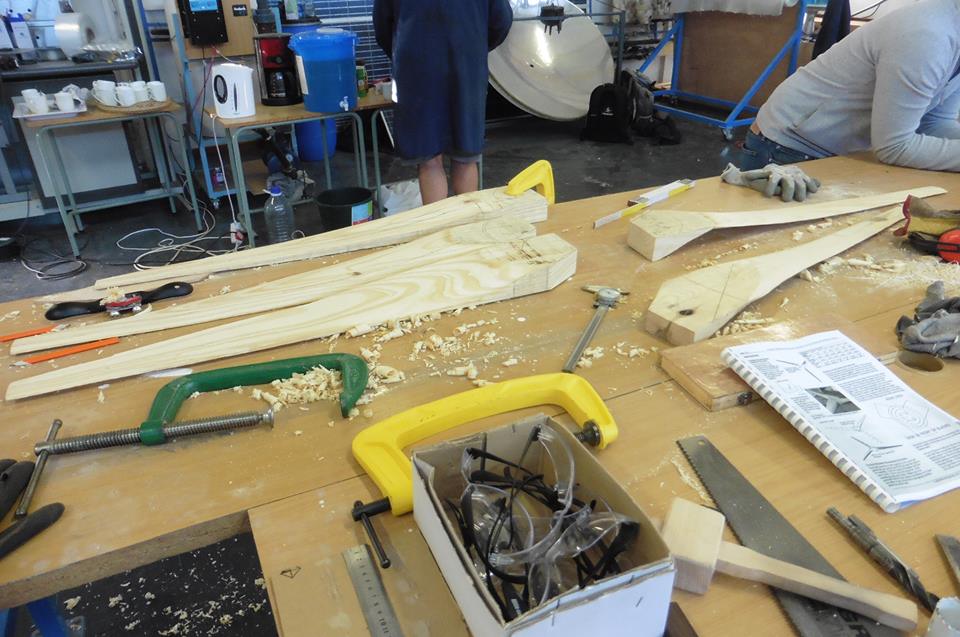

Third step of the blade carving, making the right blade thickness at each station

Welding tail boom stops and brackets

Winding coils with a home made coil winder

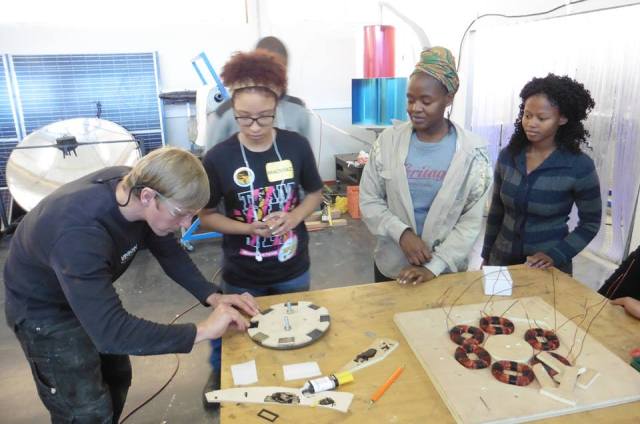

Some finished coils on the right and placing magnets on the metal disk on the left

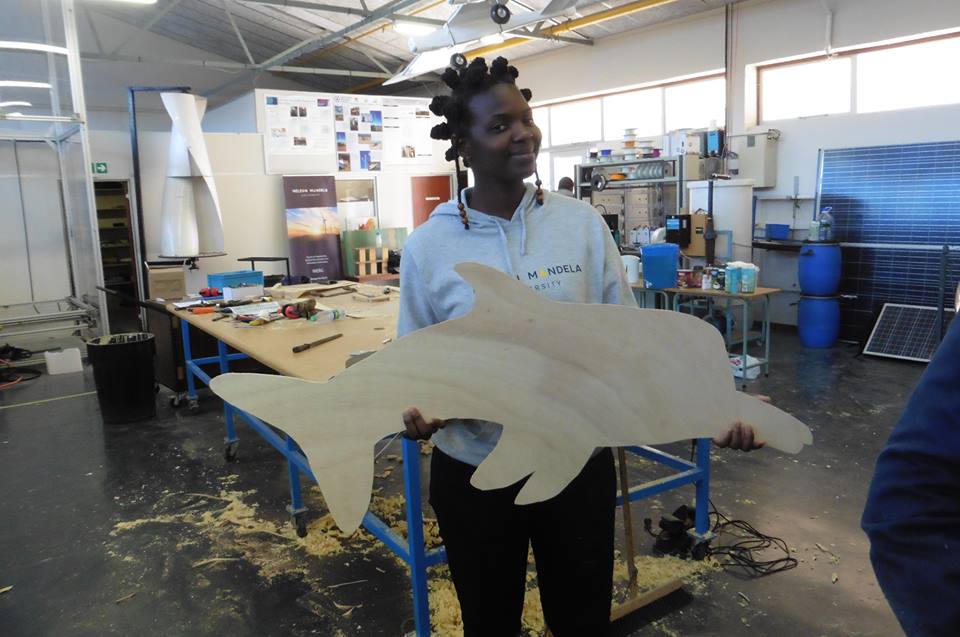

A beautifully drawn and cut tail vane in the shape of a dolphin

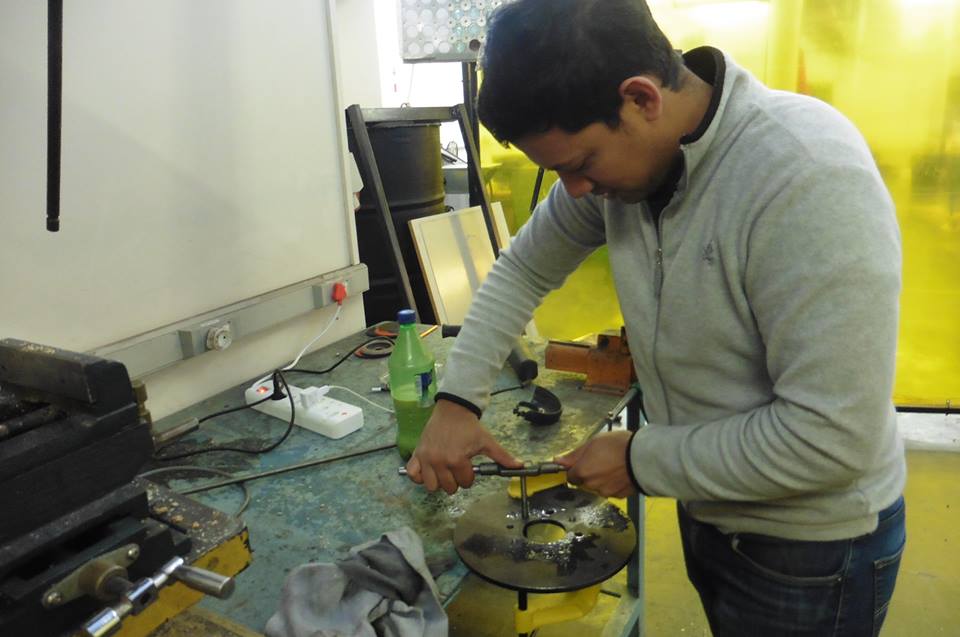

Tapping the jacking holes in the metal disk

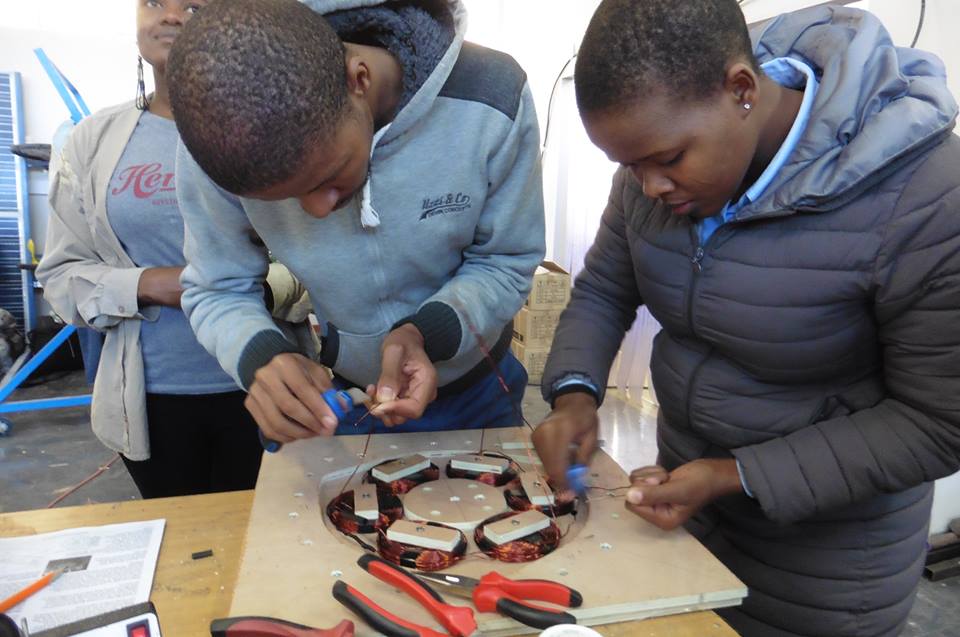

Soldering coils in a three phase star connection

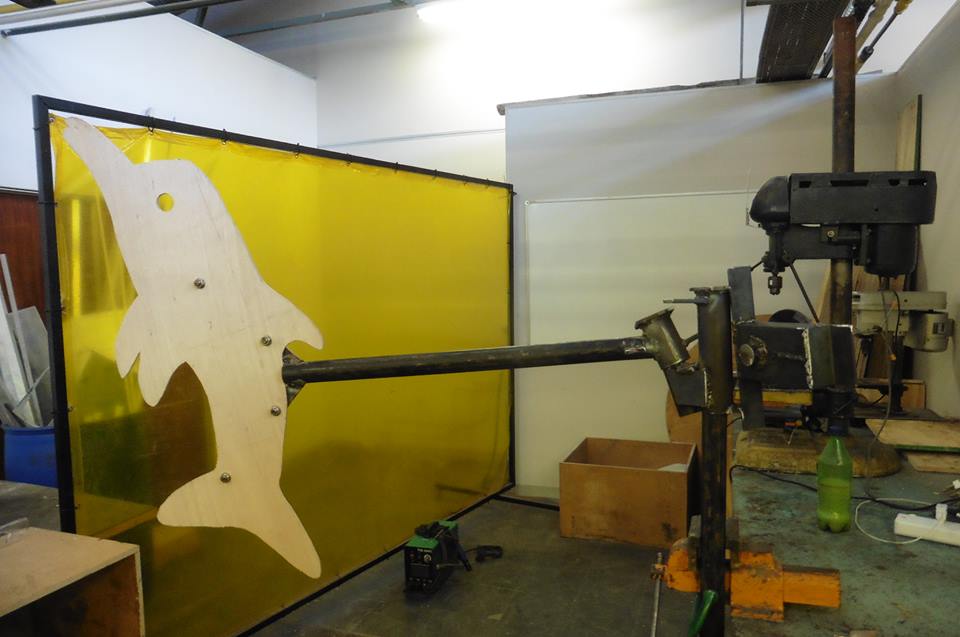

The complete metal structure with the tail vane attached

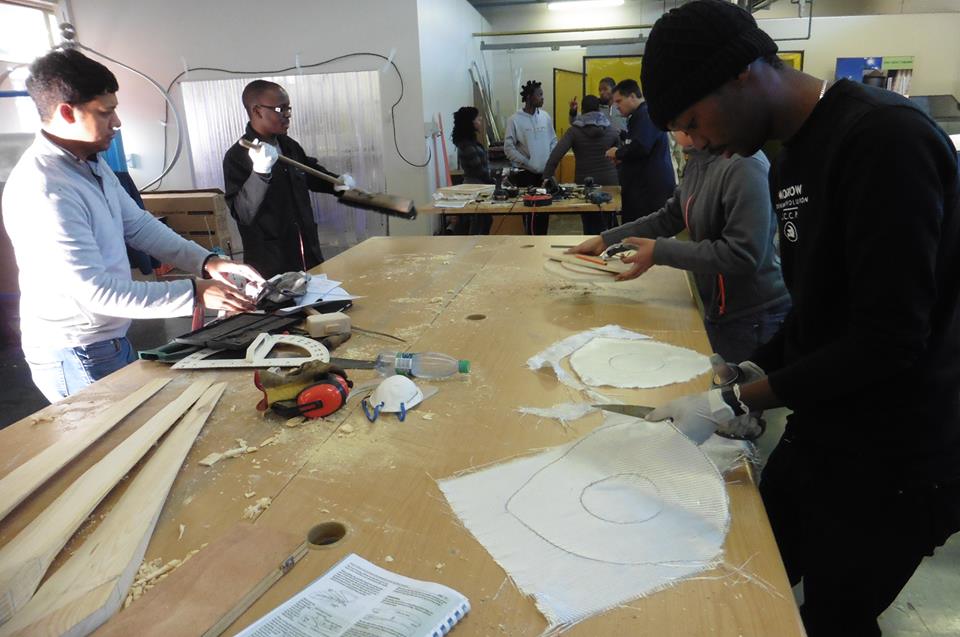

Cutting fiberglass for the stator and rotor casting

Completed sets of blades with airfoil profile

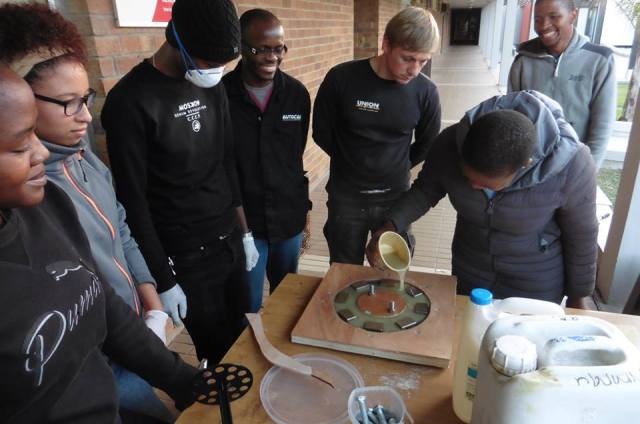

Casting a magnet rotor disk in a plywood mould

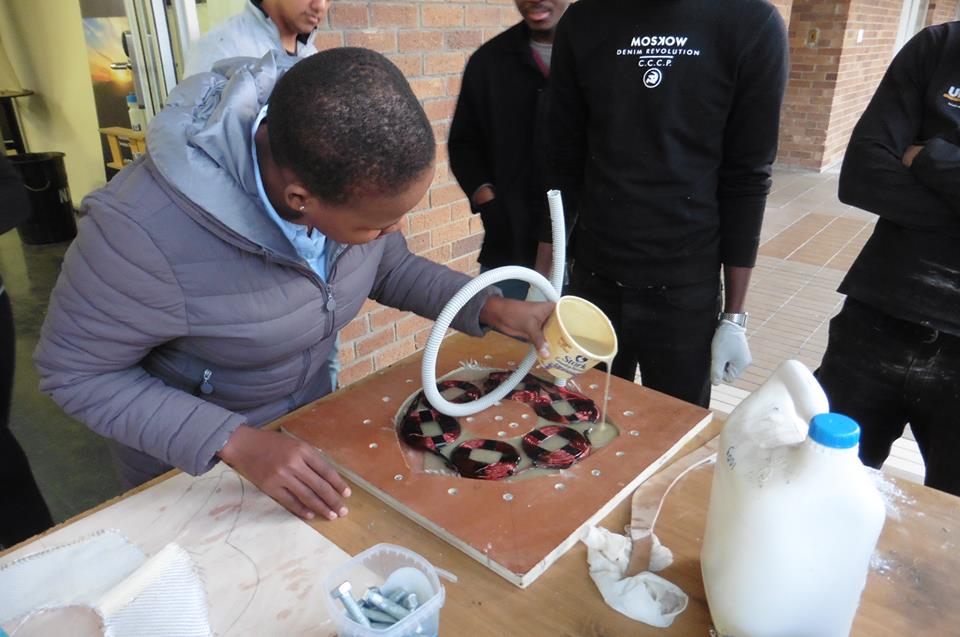

Casting the stator coils in plywood mould

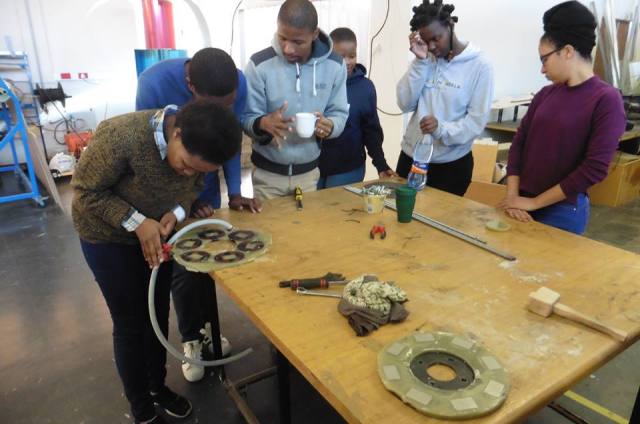

Releasing the rotor and stator from the moulds

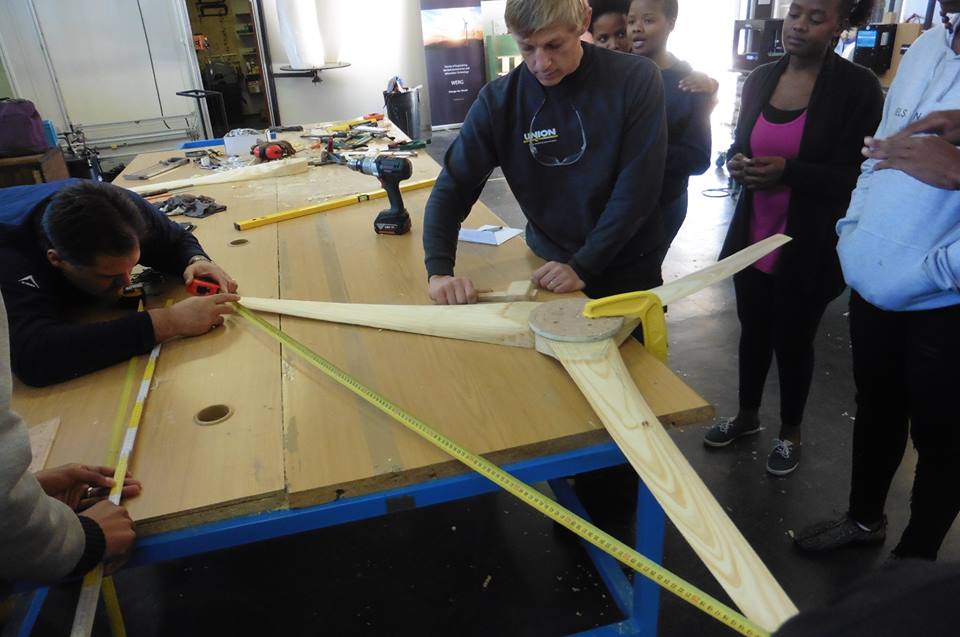

Assembling the rotor blades and hub

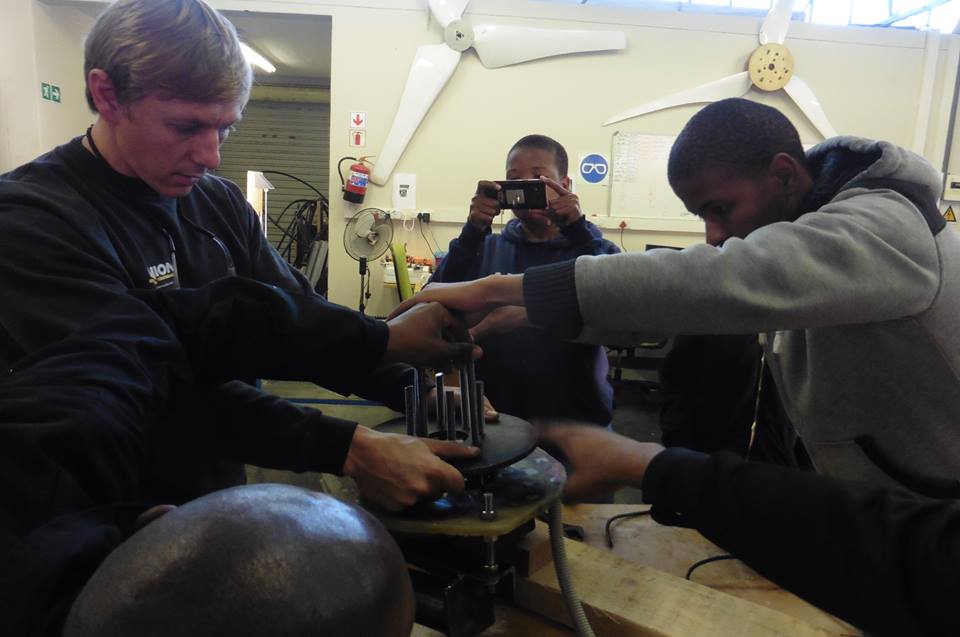

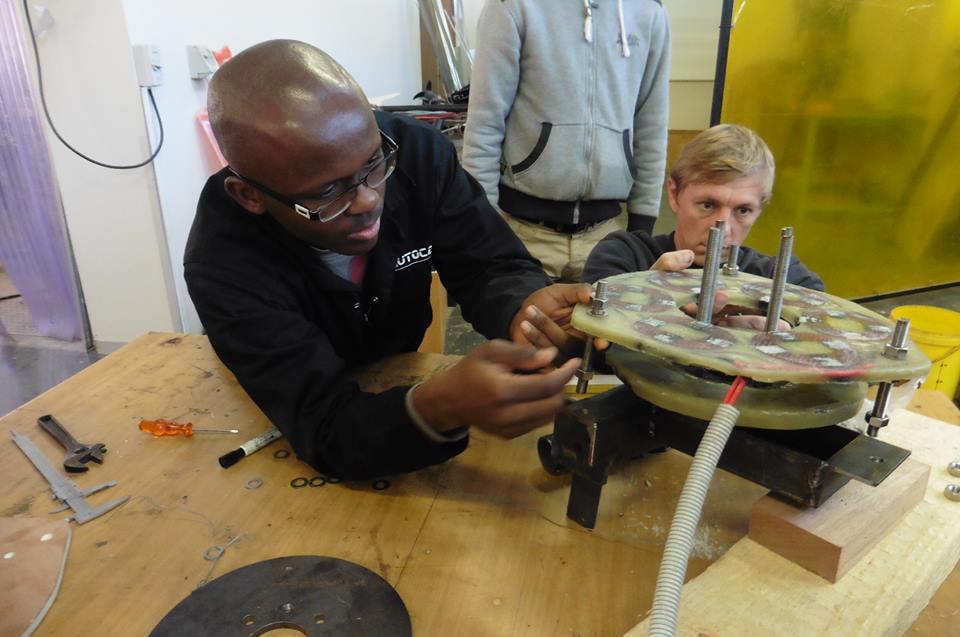

Assembling the generator and centering the stator

Assembling the generator by lowering the second magnet rotor disk

Mounting the blades on the generator and balancing

The team! Great work!

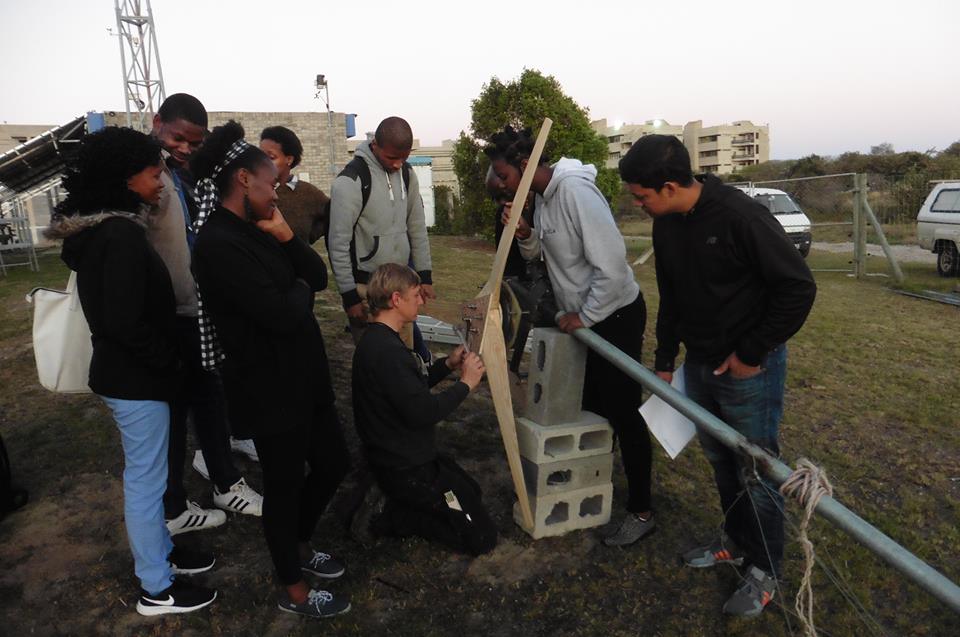

Placing the wind turbine on the tower and connecting the transmission cables

The wind turbine on top of the tower, waiting for the wind!
