November 2017 – Rural electrification project in Nepal using locally manufactured wind turbines

The workshops of Kathmandu University

Viśwákarma, protector of engineers, artisans and architects!

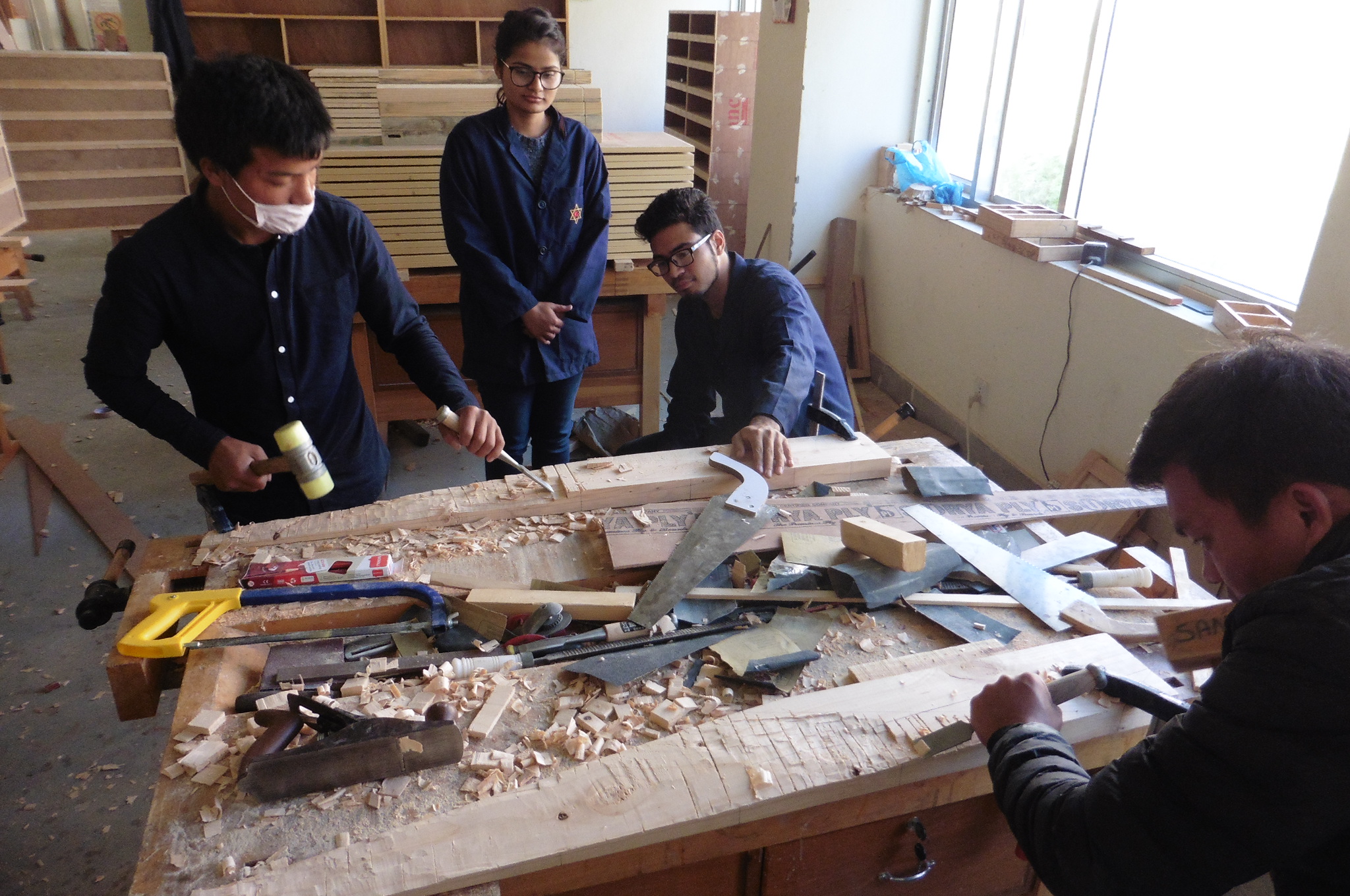

Introductory session on small wind turbines

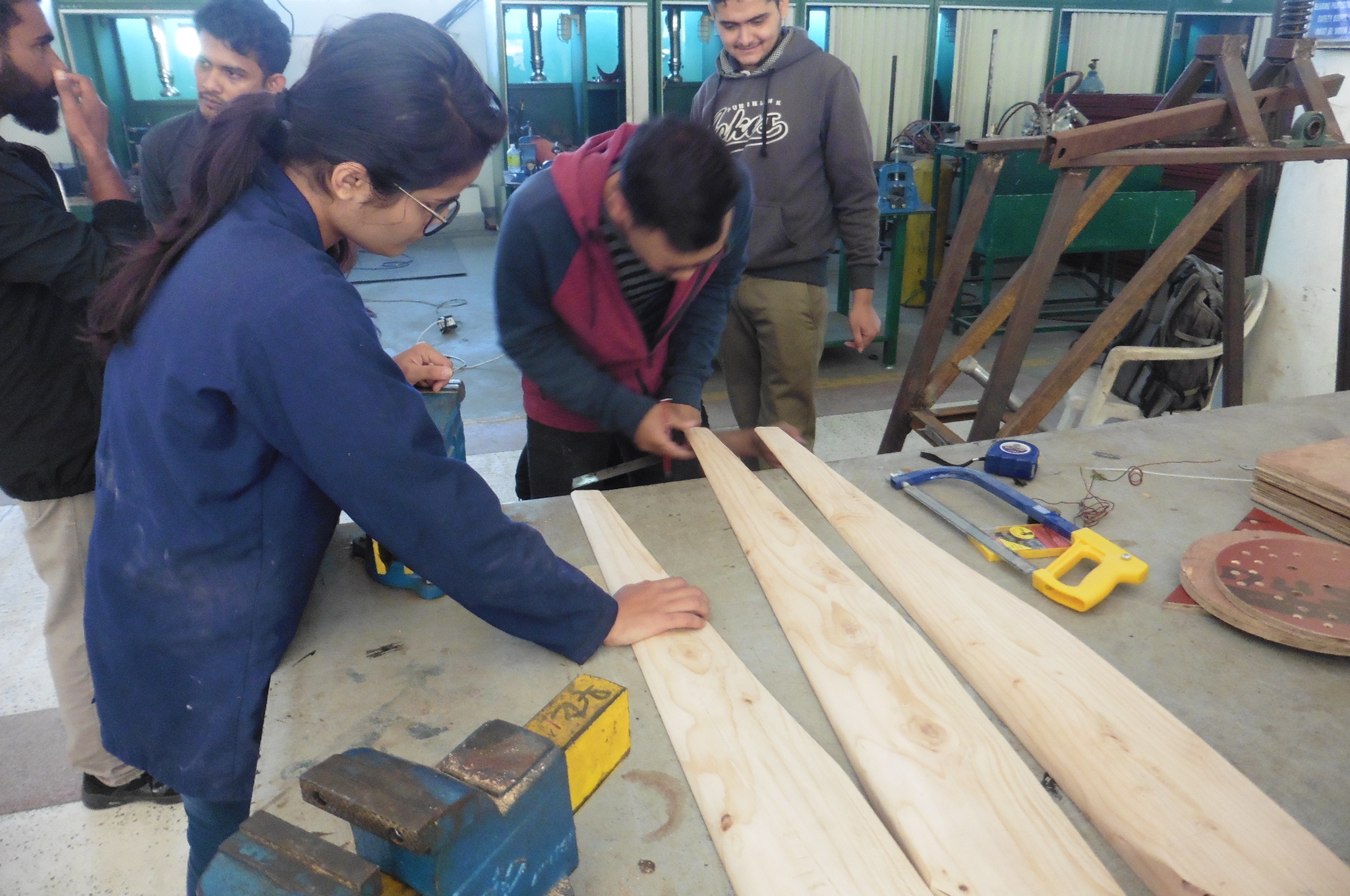

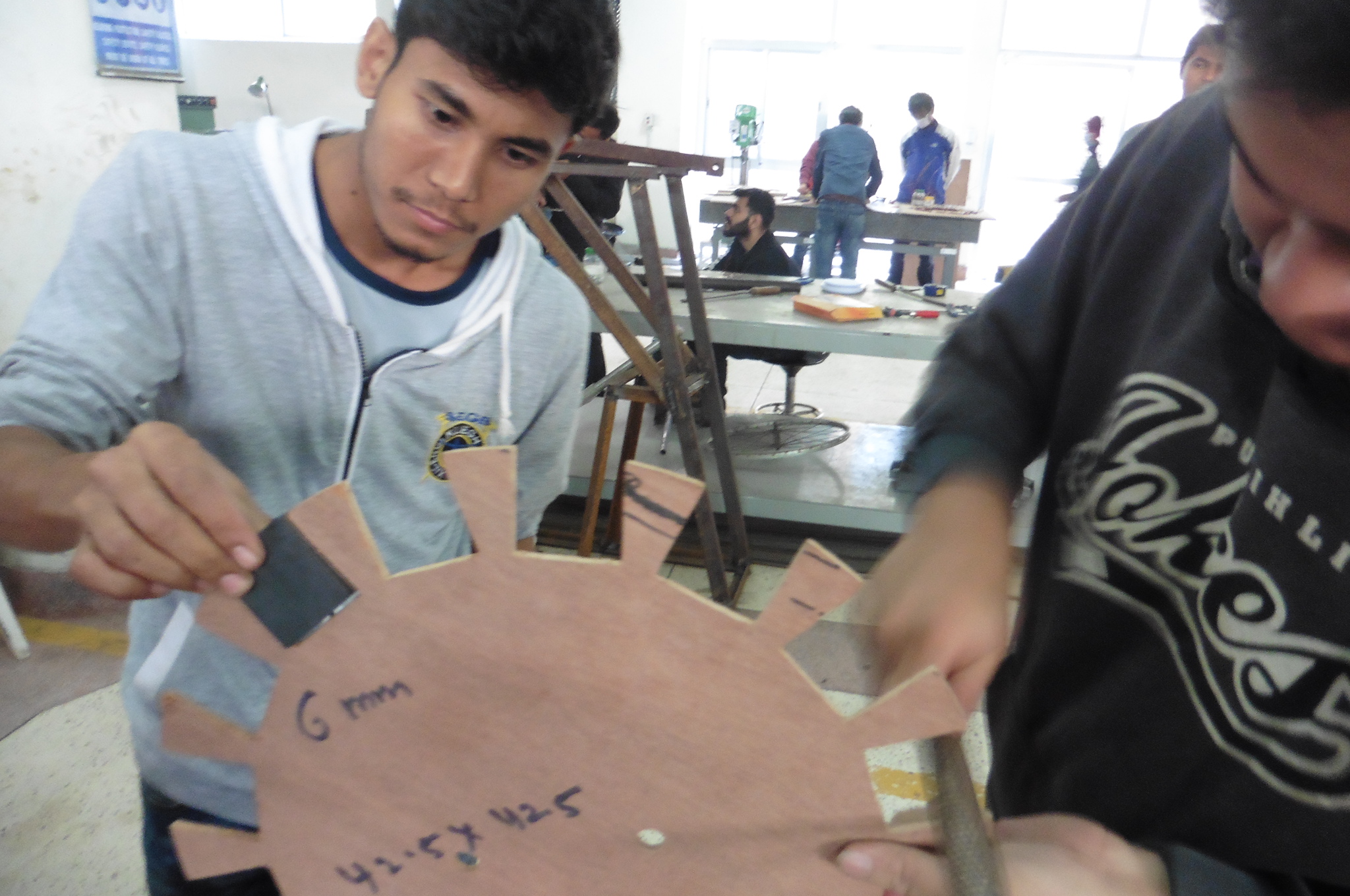

Marking the blade chord using a template

Making the coil winder

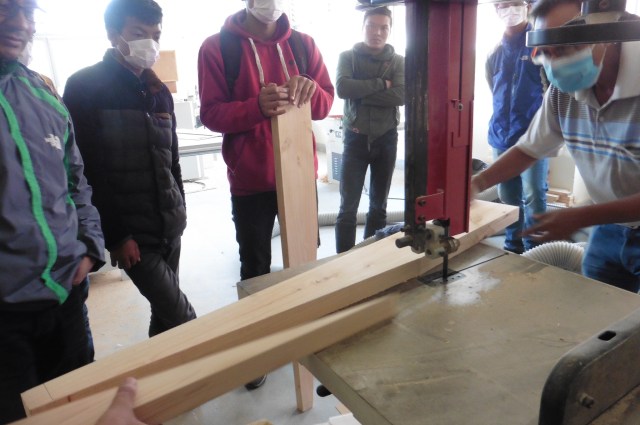

Using the workshop machinery to cut the chord and save some time

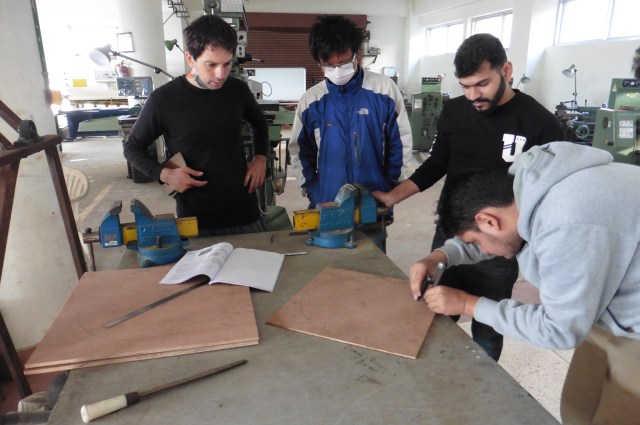

Drawing the moulds on plywood

Making the twist of the blades

Making a magnet rotor mould

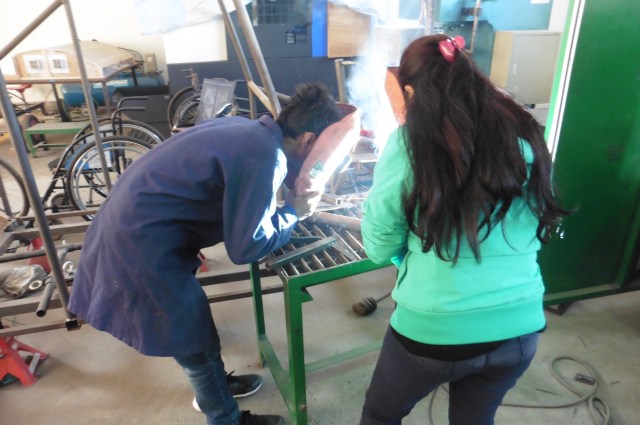

Welding takes practice

A coil placed on top of the magnet positioning jig showing the way magnets pass over coils

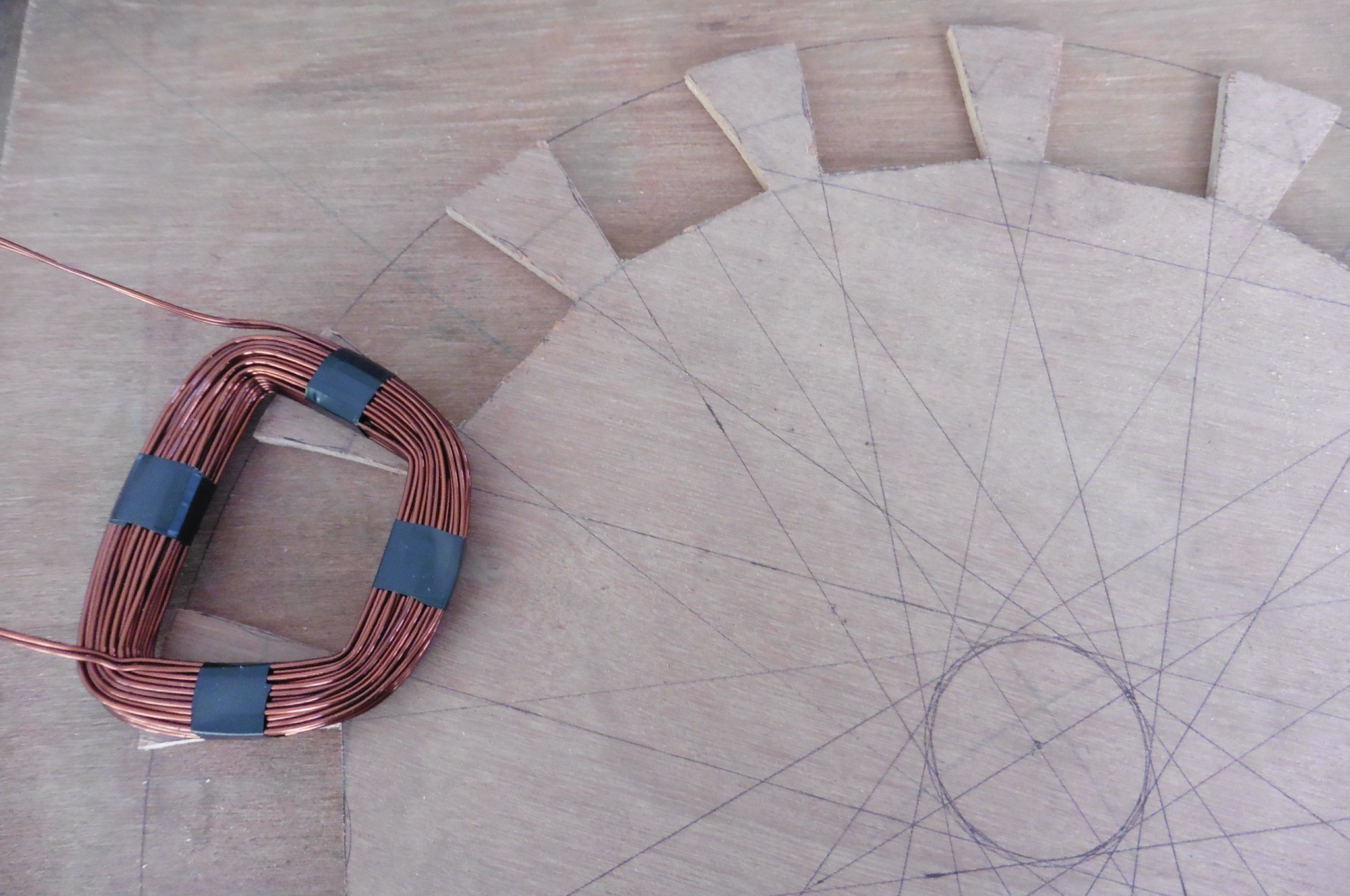

Winding coils

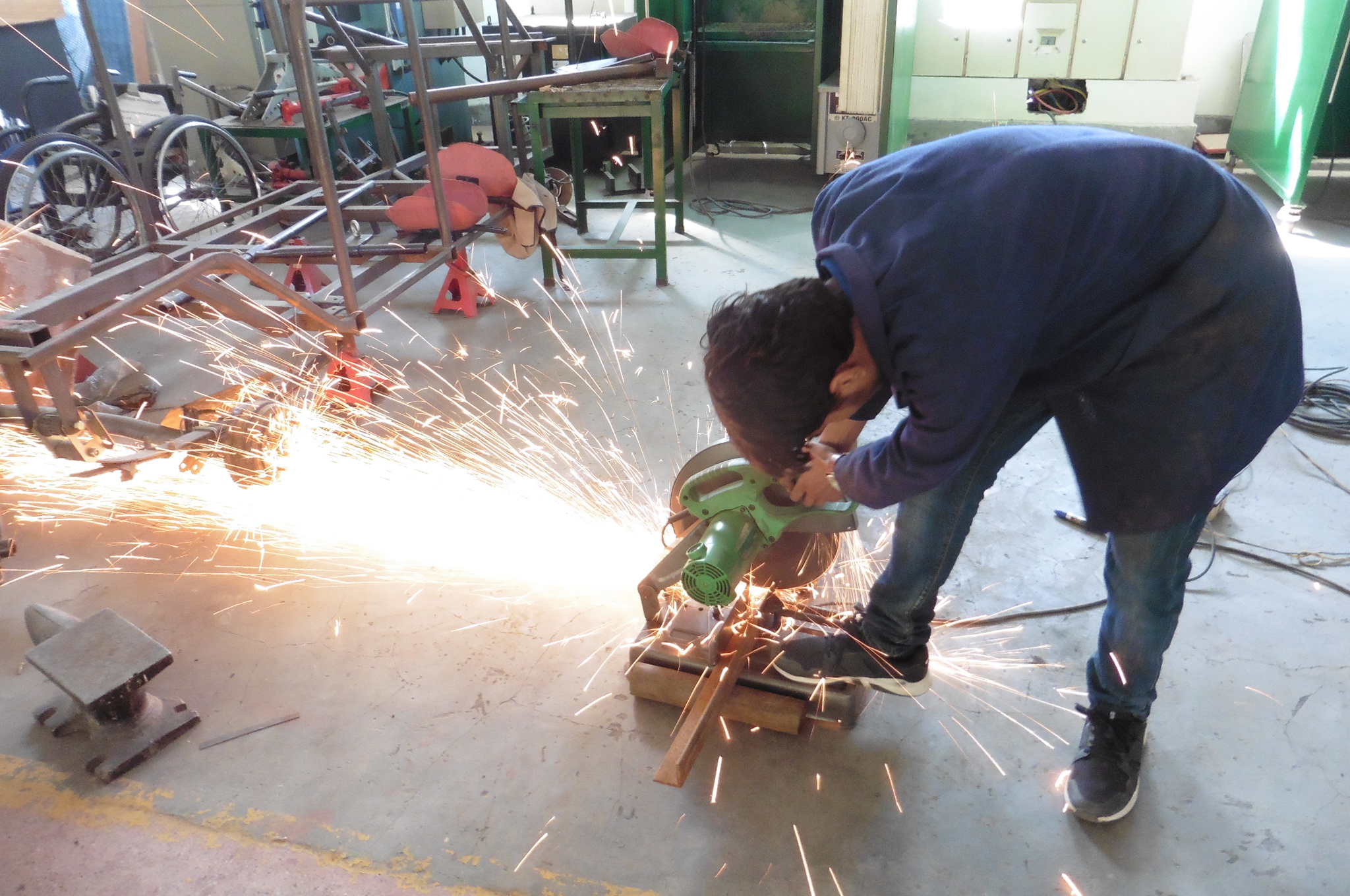

Cutting metal pieces for the metal work

Assembling the stator mould

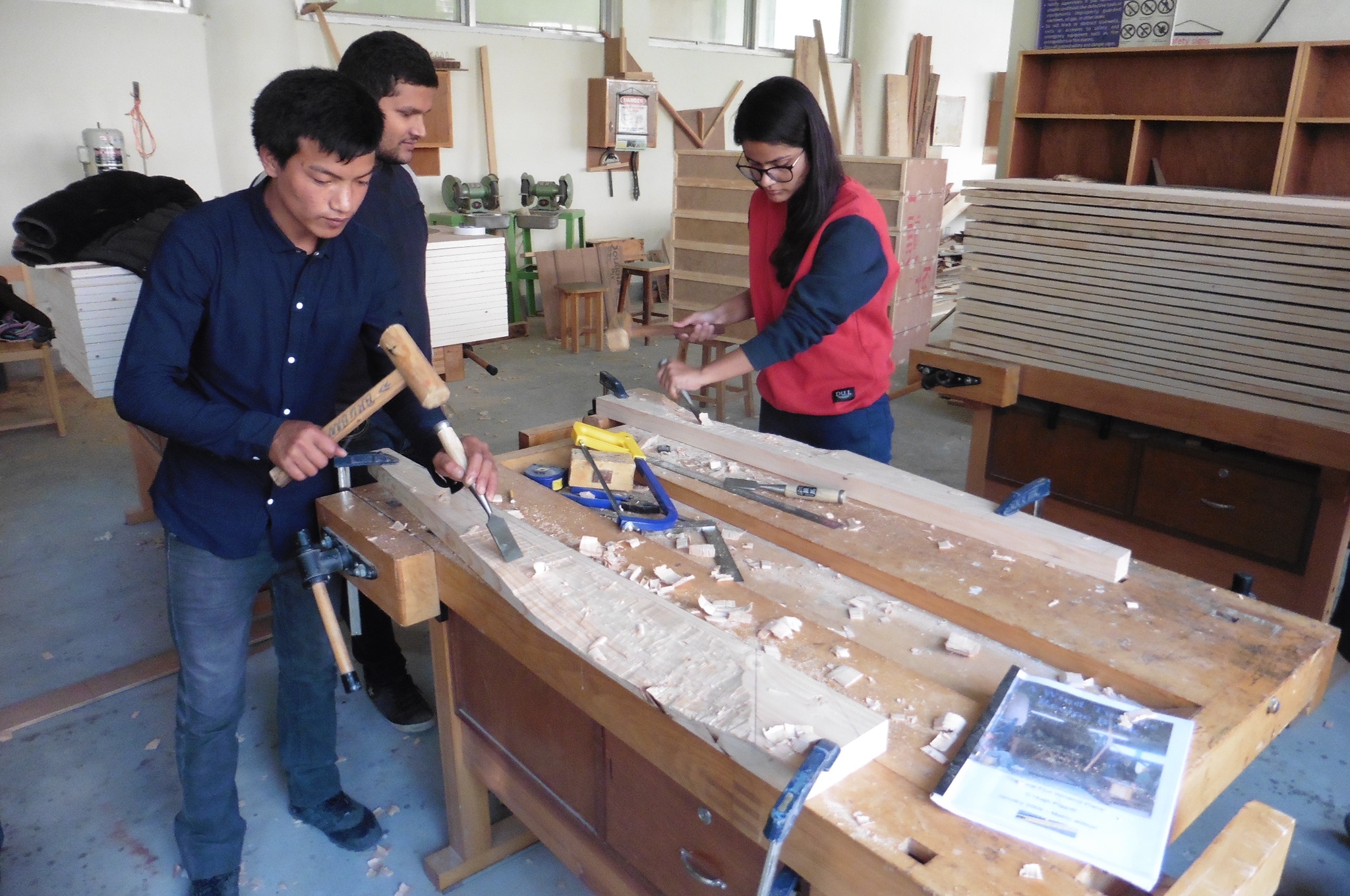

Making the thickness of the blade

Finishing touches to the magnet positioning jig

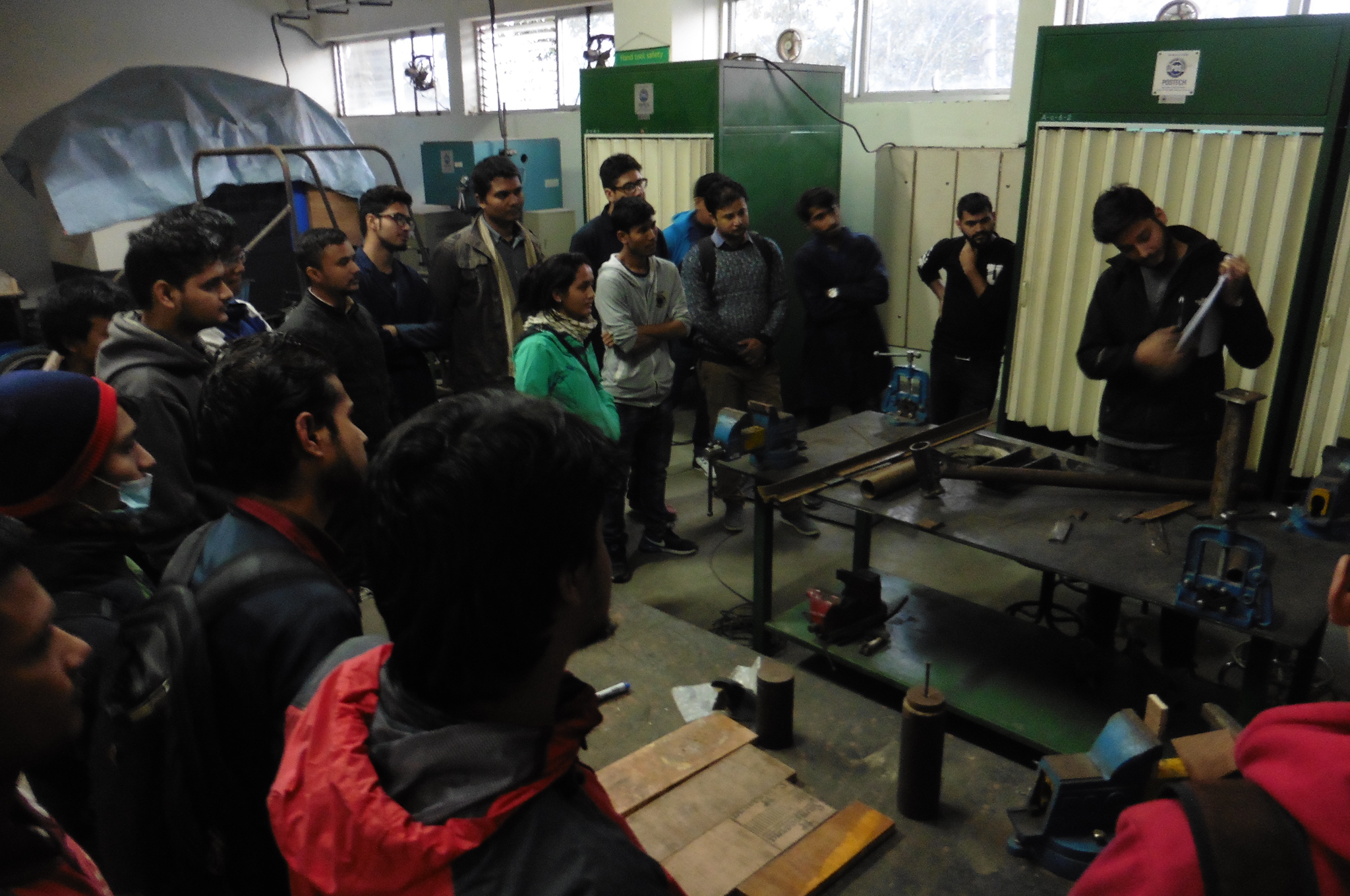

Each team explains what they did during the day

Making the thread for the jacking rods

Making the rotor hub

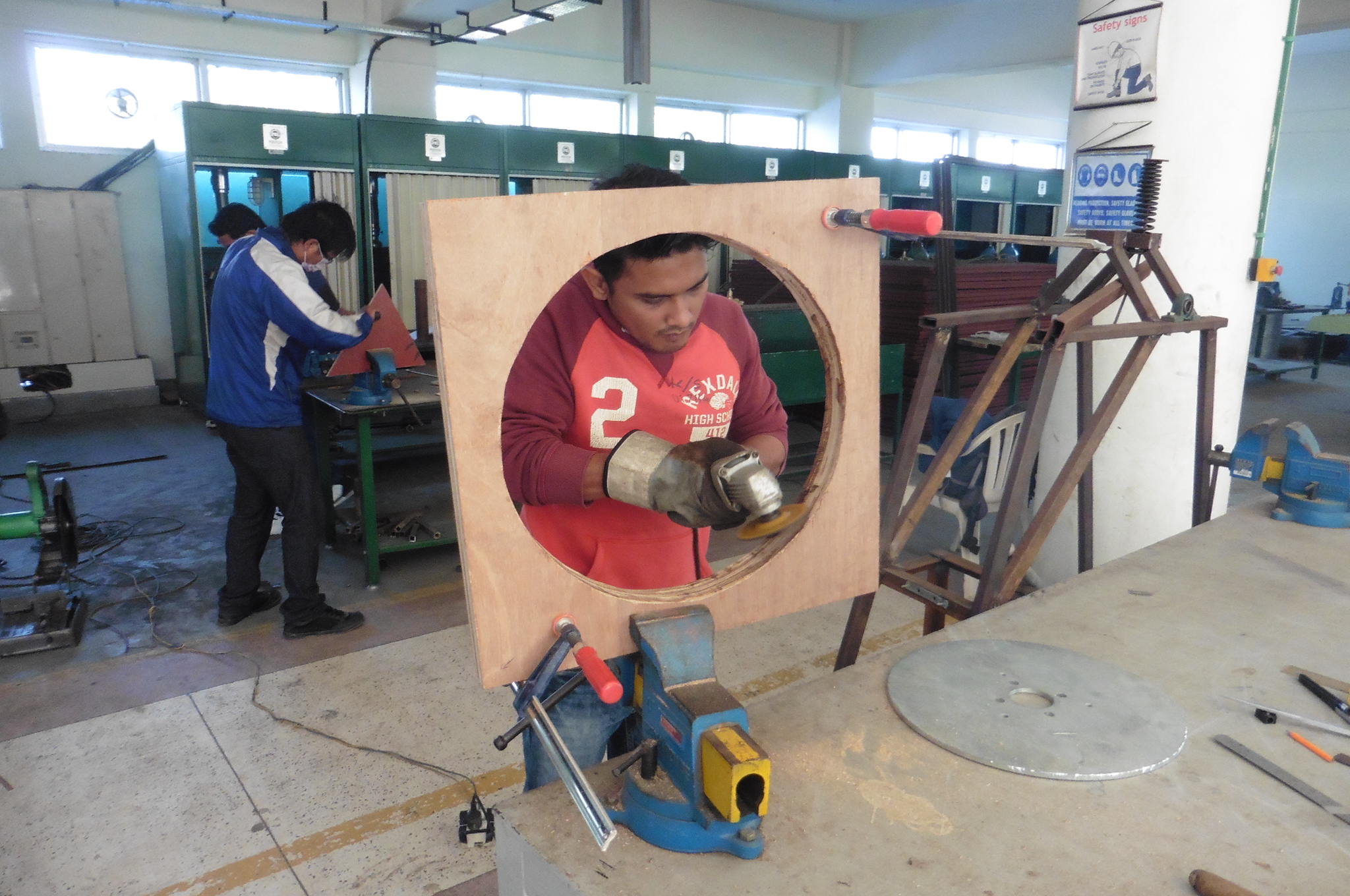

Making a whole in the metal frame to place the bearing hub axle

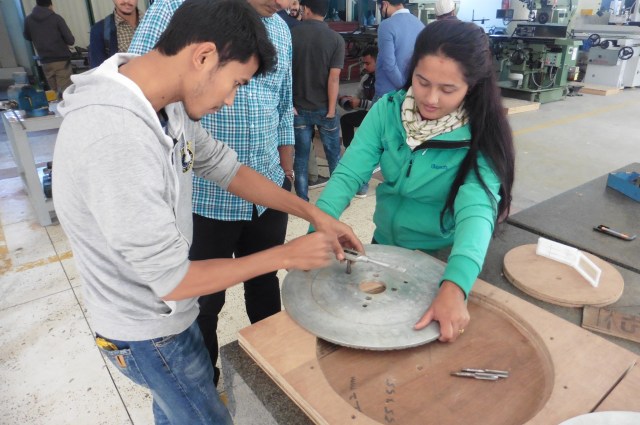

Marking screw whole in the rotor hub

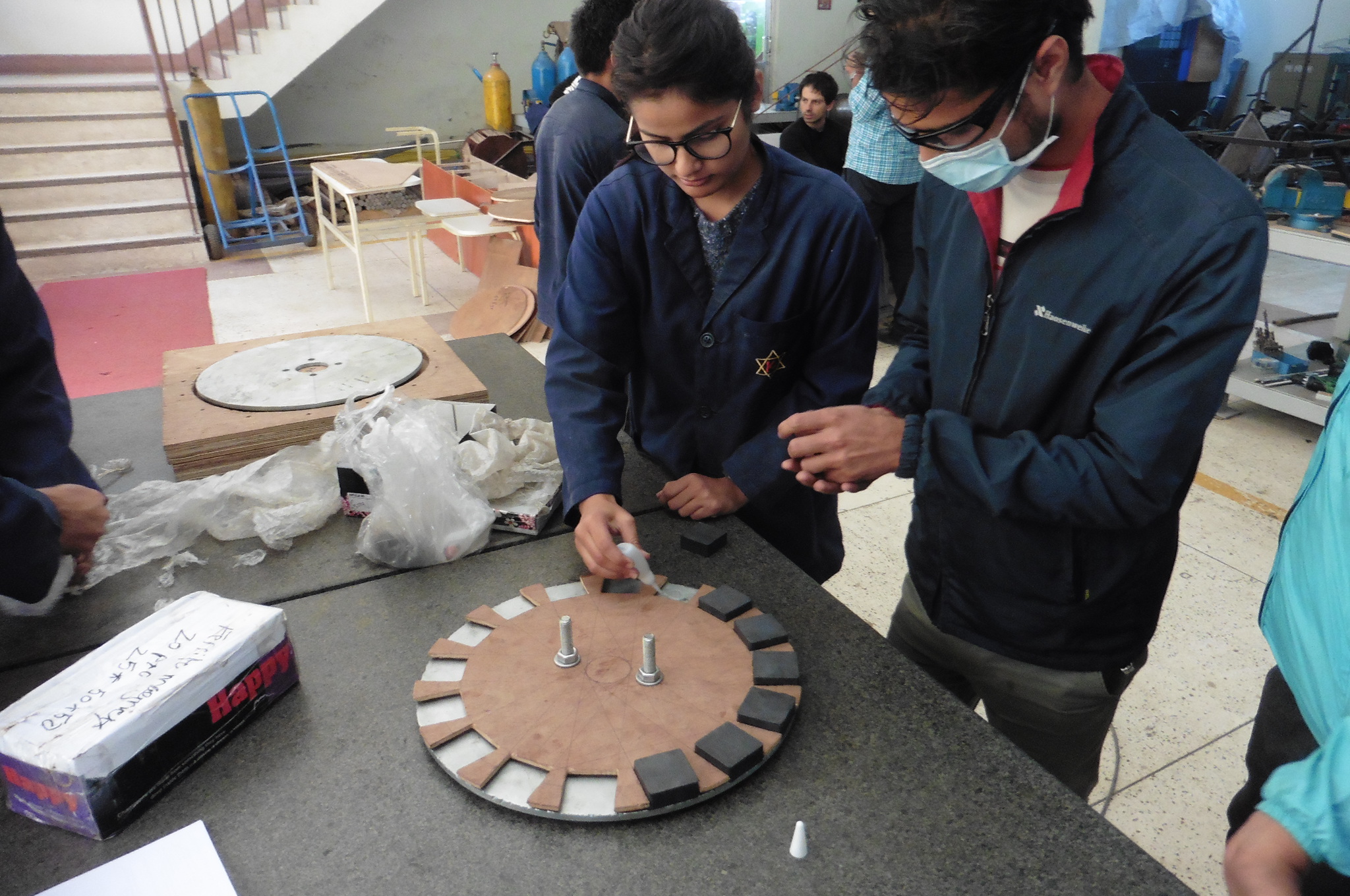

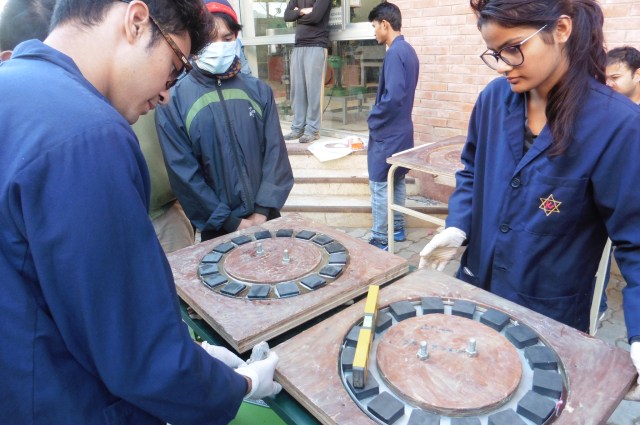

Placing ferrite magnets on the disk

Soldering the coils together in star connection

The metal frame with the yaw pipe and bearing hub

Cutting the tips of the finished blades to make them all the same length

Some stainless steel wire rope around the magnets to make sure they stay in place

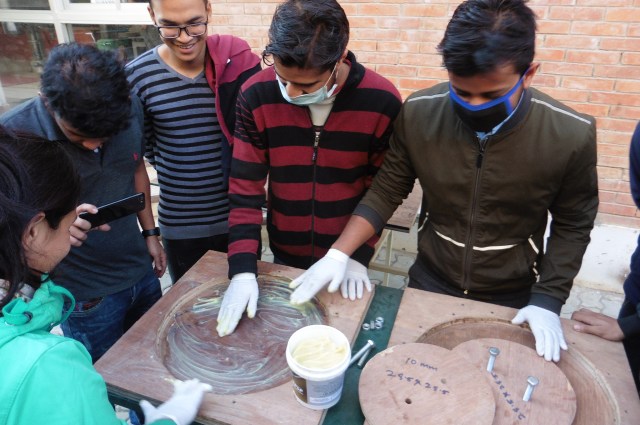

Waxing the moulds in preparation for casting with resin

The two magnet rotors in the moulds

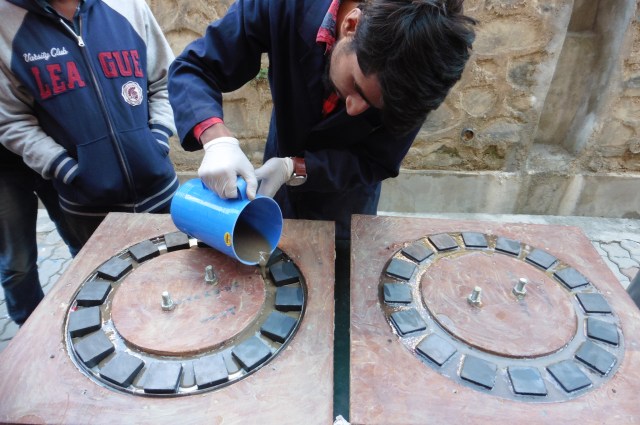

Filling up the moulds with resin

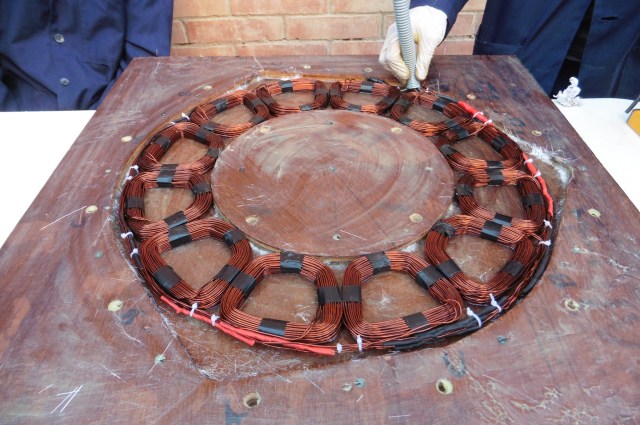

The stator coils in the mould

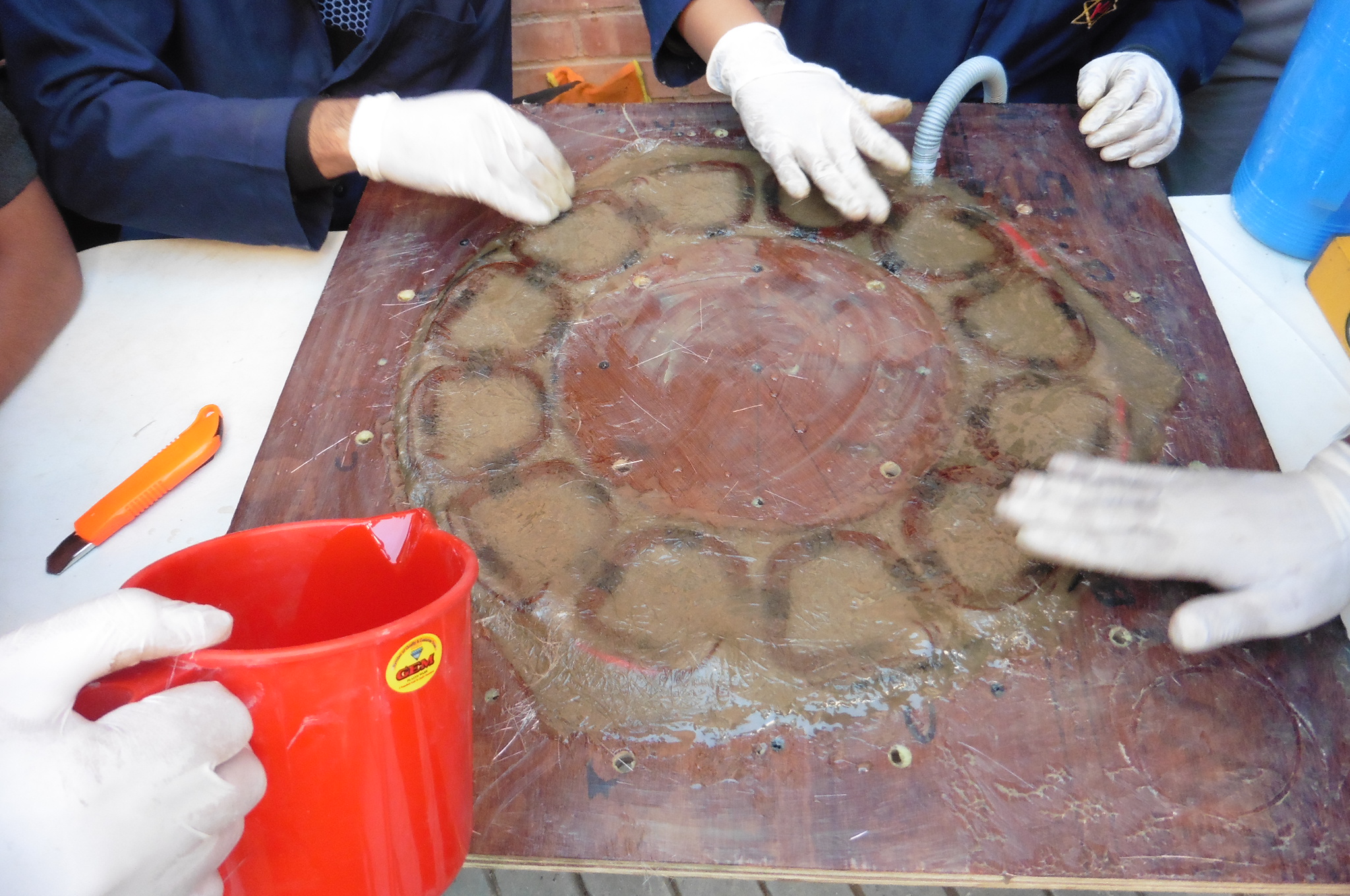

Pouring resin in the stator coils

After all the resin is in, one extra layer of fiber glass at the top

Assembly of the rotor blades

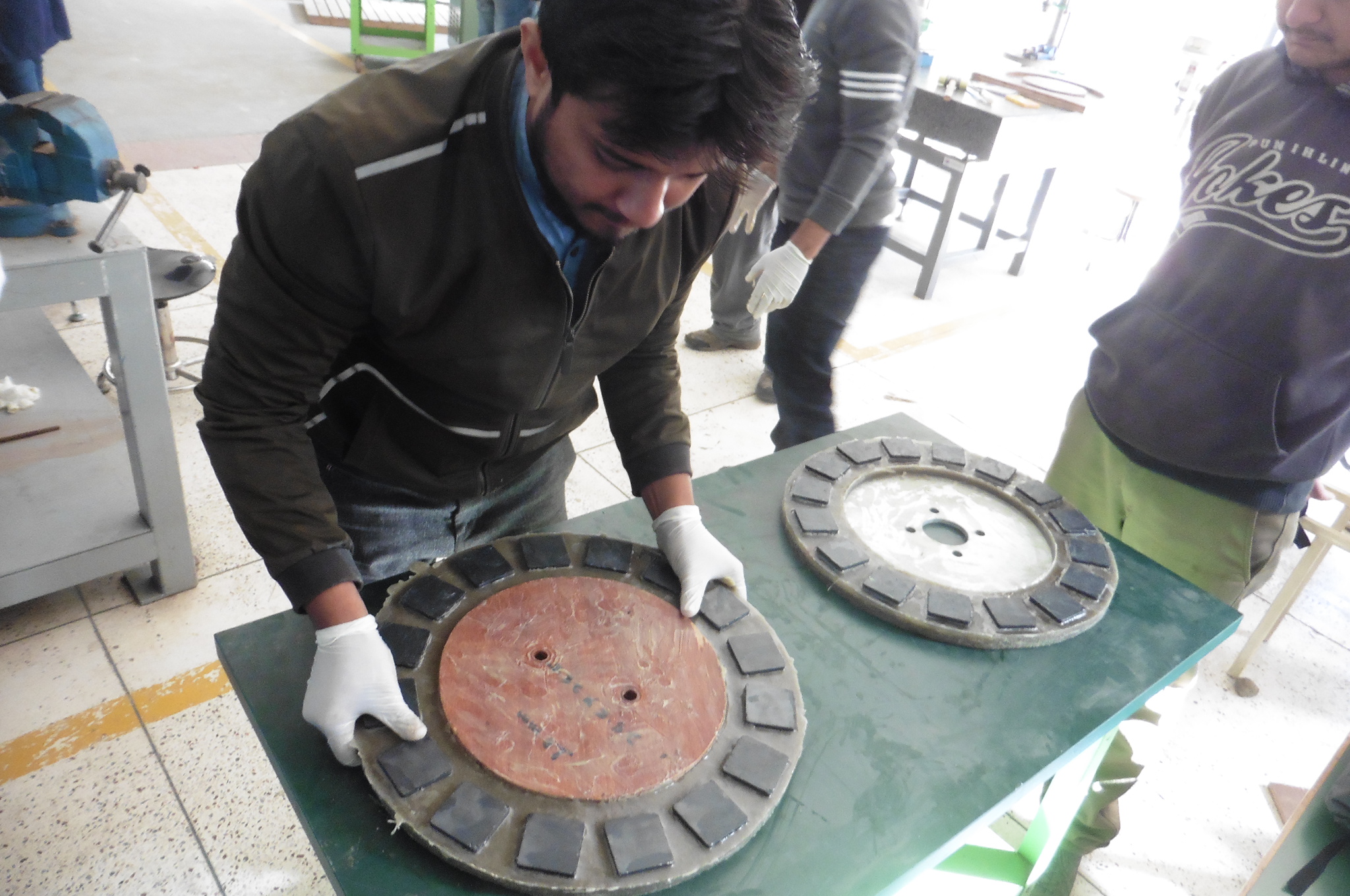

Taking the magnet rotors out of the moulds

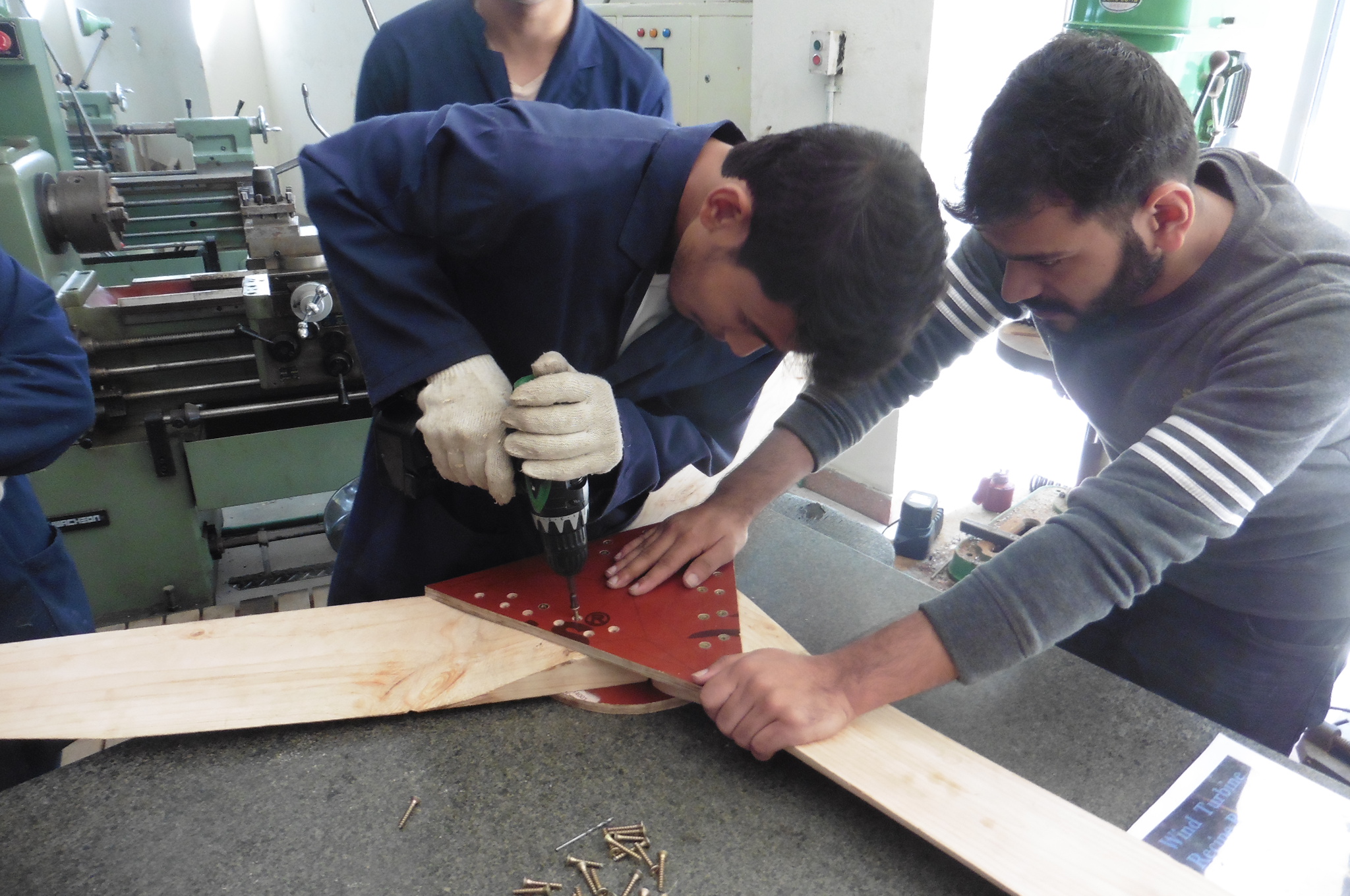

Screwing the hub on the blades

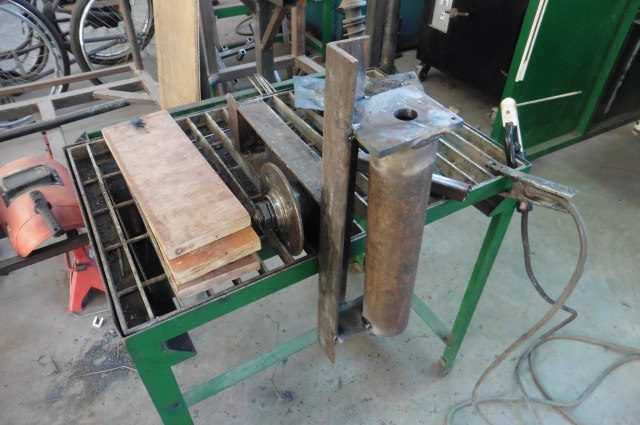

Final welds of the tail furling system

Assembly of the generator

Lowering the outer magnet rotor

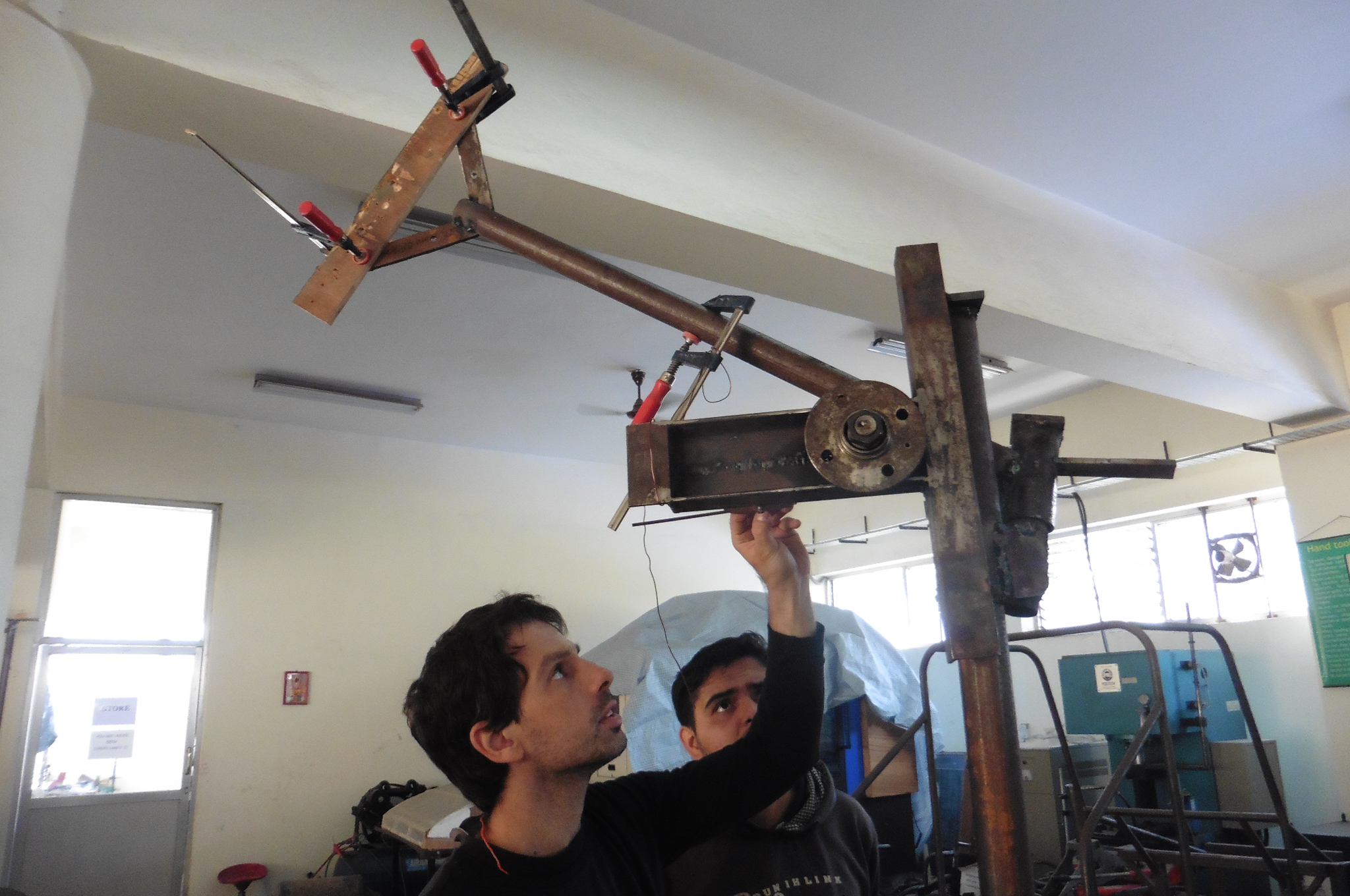

Mounting the tail vane on the boom

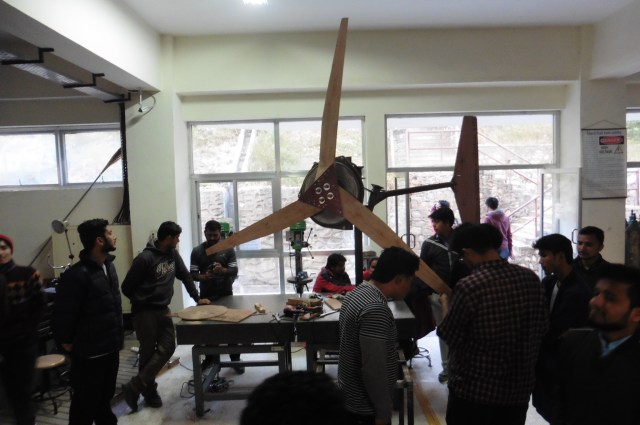

The wind turbine assembled in the workshop

The group that made it all happen!


The turbine was then installed in the rural community of Mityal

Carrying batteries with the motorbike

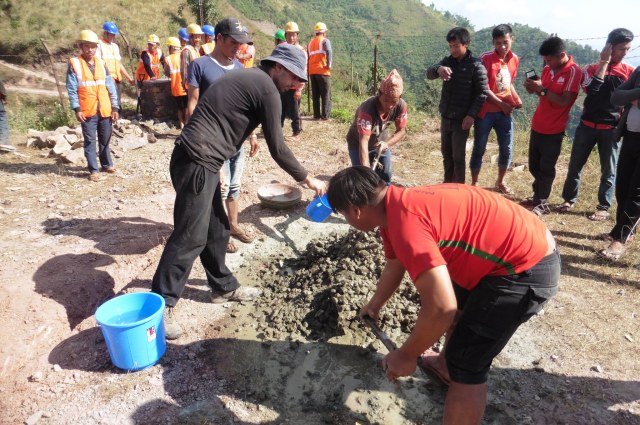

Mixing concrete

Anchors in place

Transporting concrete

Laying underground cables

Tower base and cable connections

The wind turbine on the tower overlooking the village and ready for erection

Lifting the tower

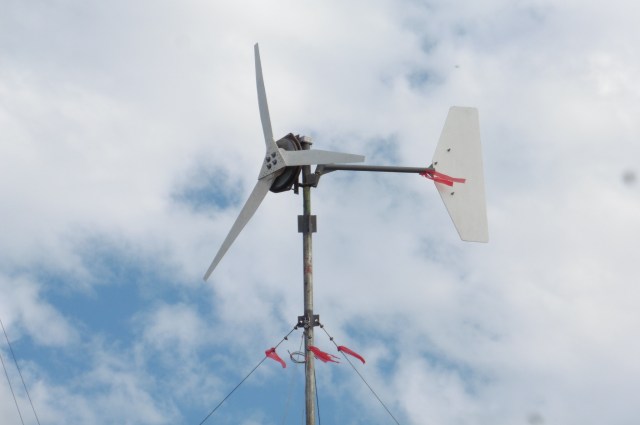

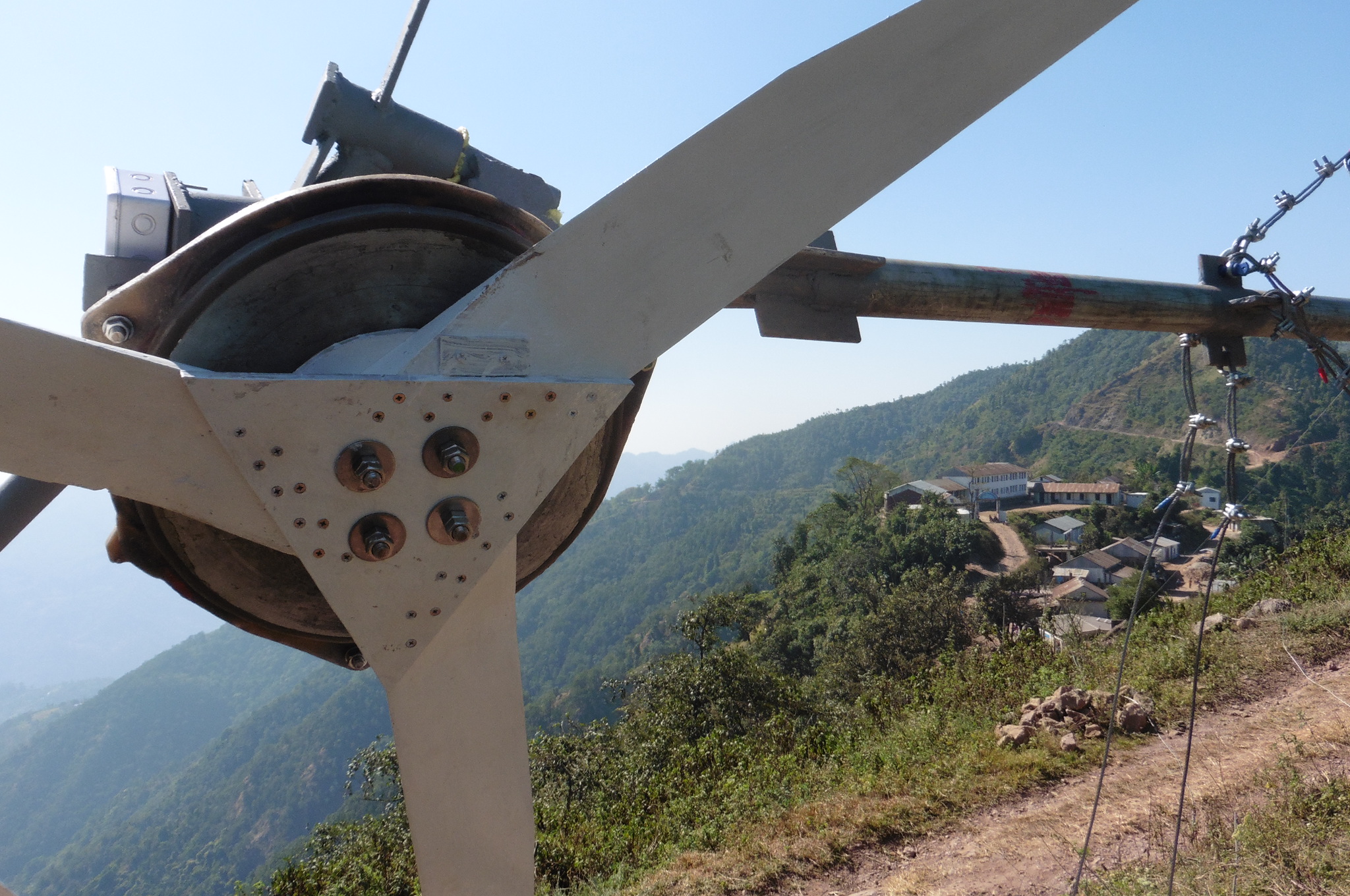

The 2.4m Ferrite Wind Turbine on the tower

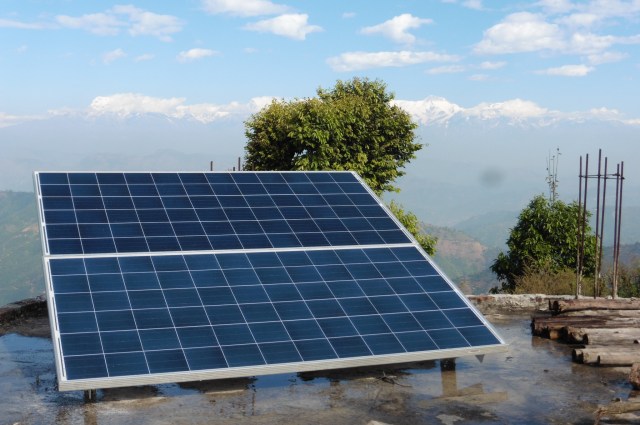

The solar panels overlooking the Himalayan mountain ranges

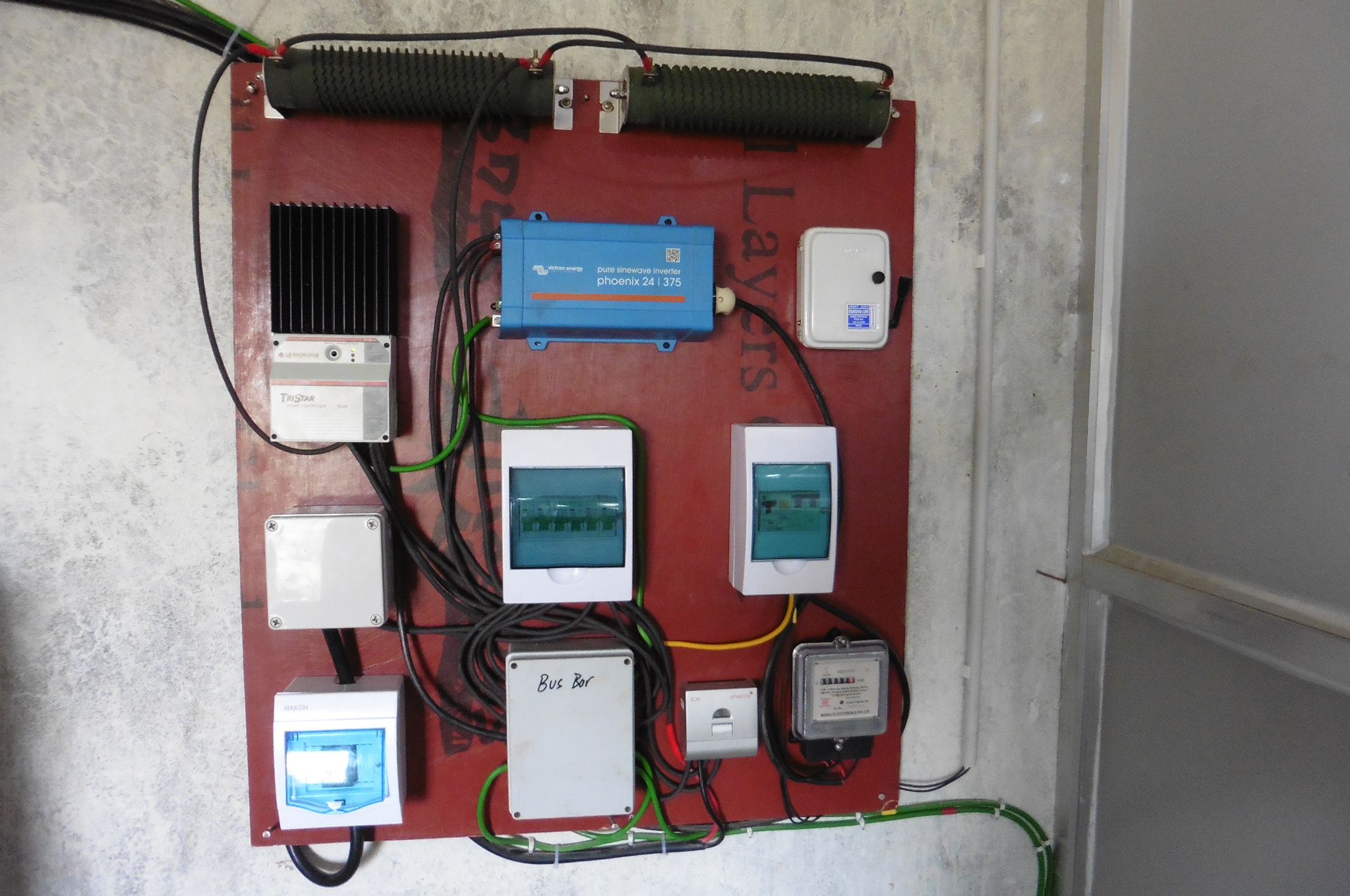

The electrical system board

Lights in the VDC office

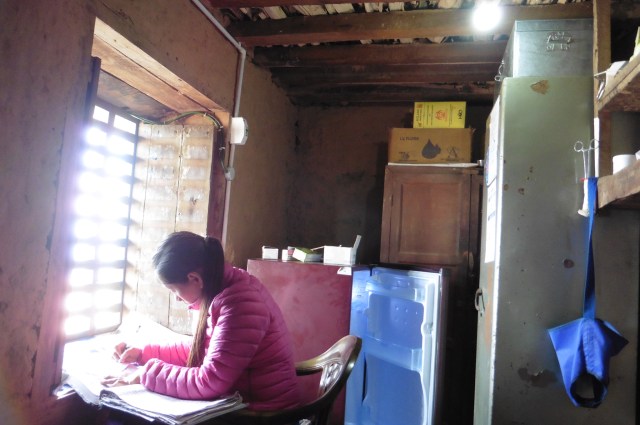

Refrigerator and lights in the health post

Women’s meeting in the health post

A small ceremony after the installation of the system
