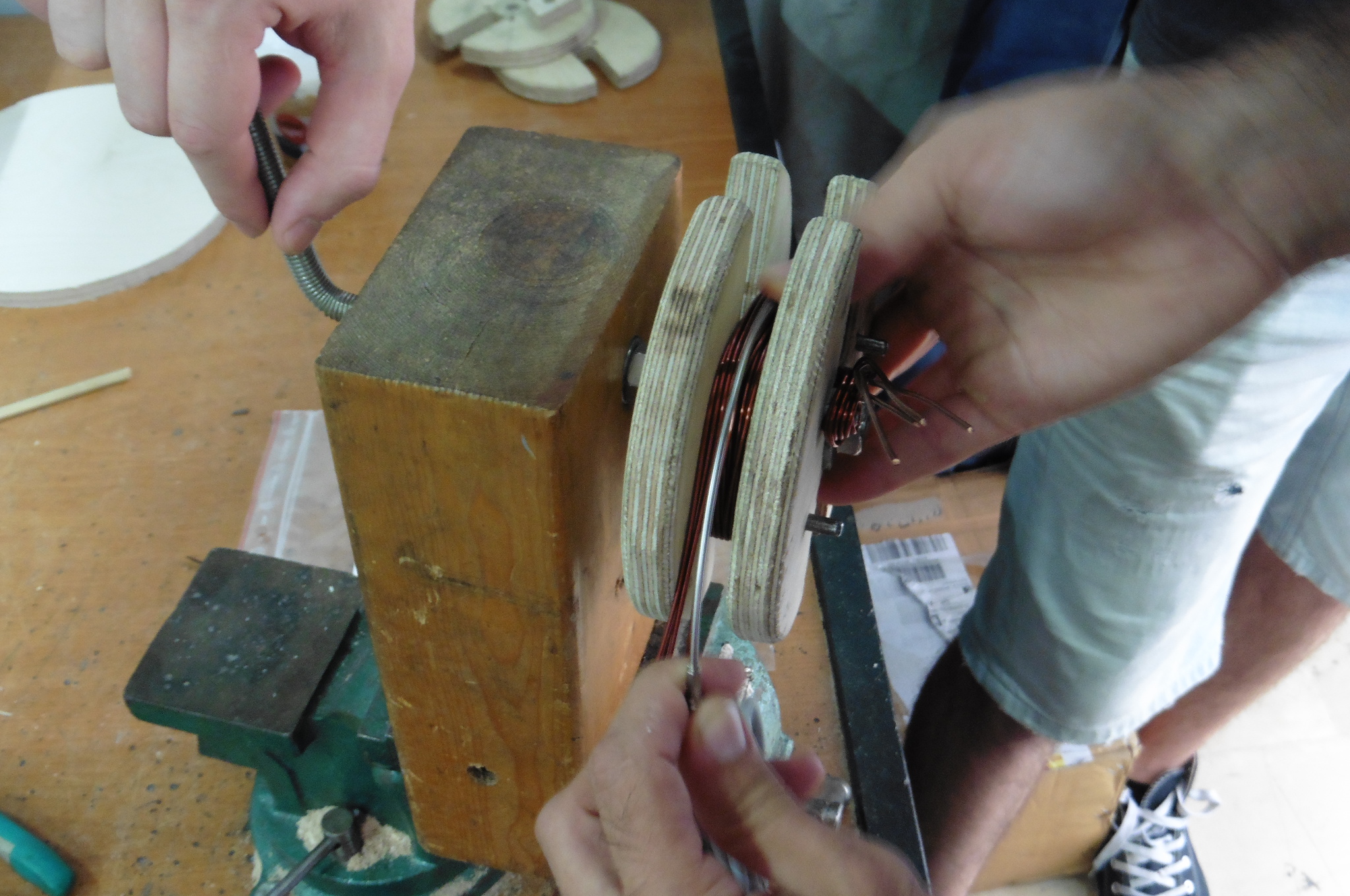

Winding coils with four wires at hand

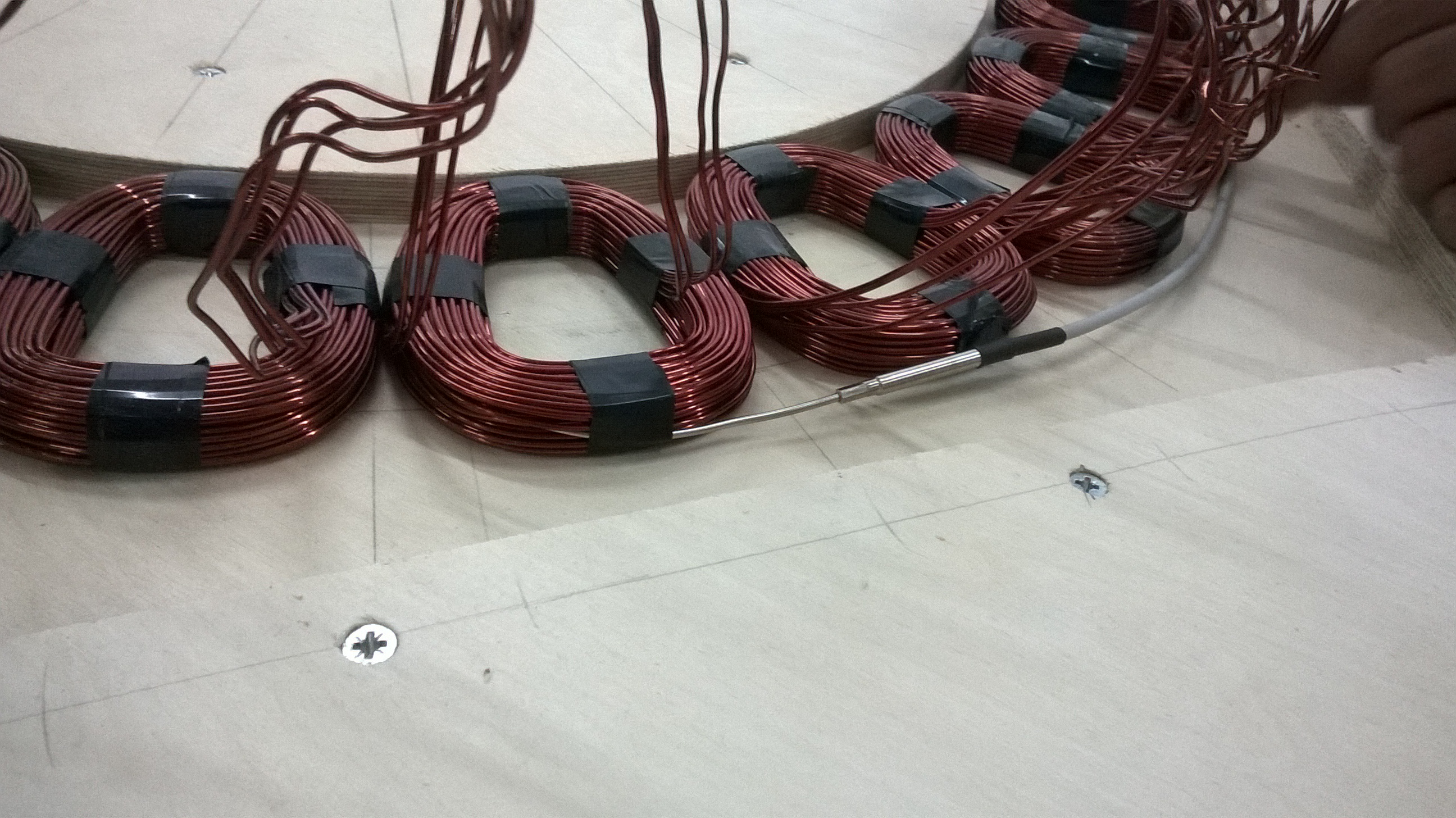

Inserting the temperature sensor in one of the coils

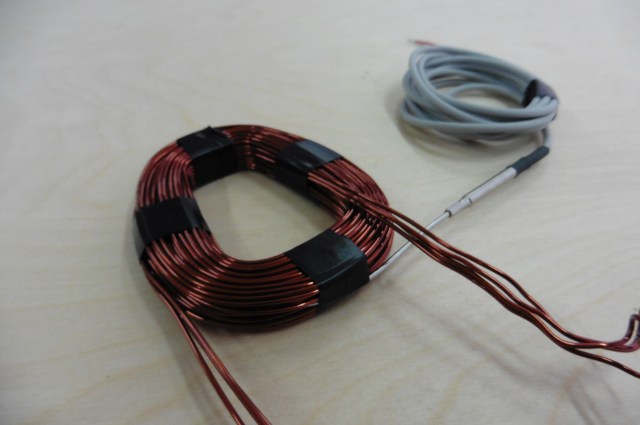

The coils and temperature sensor after winding

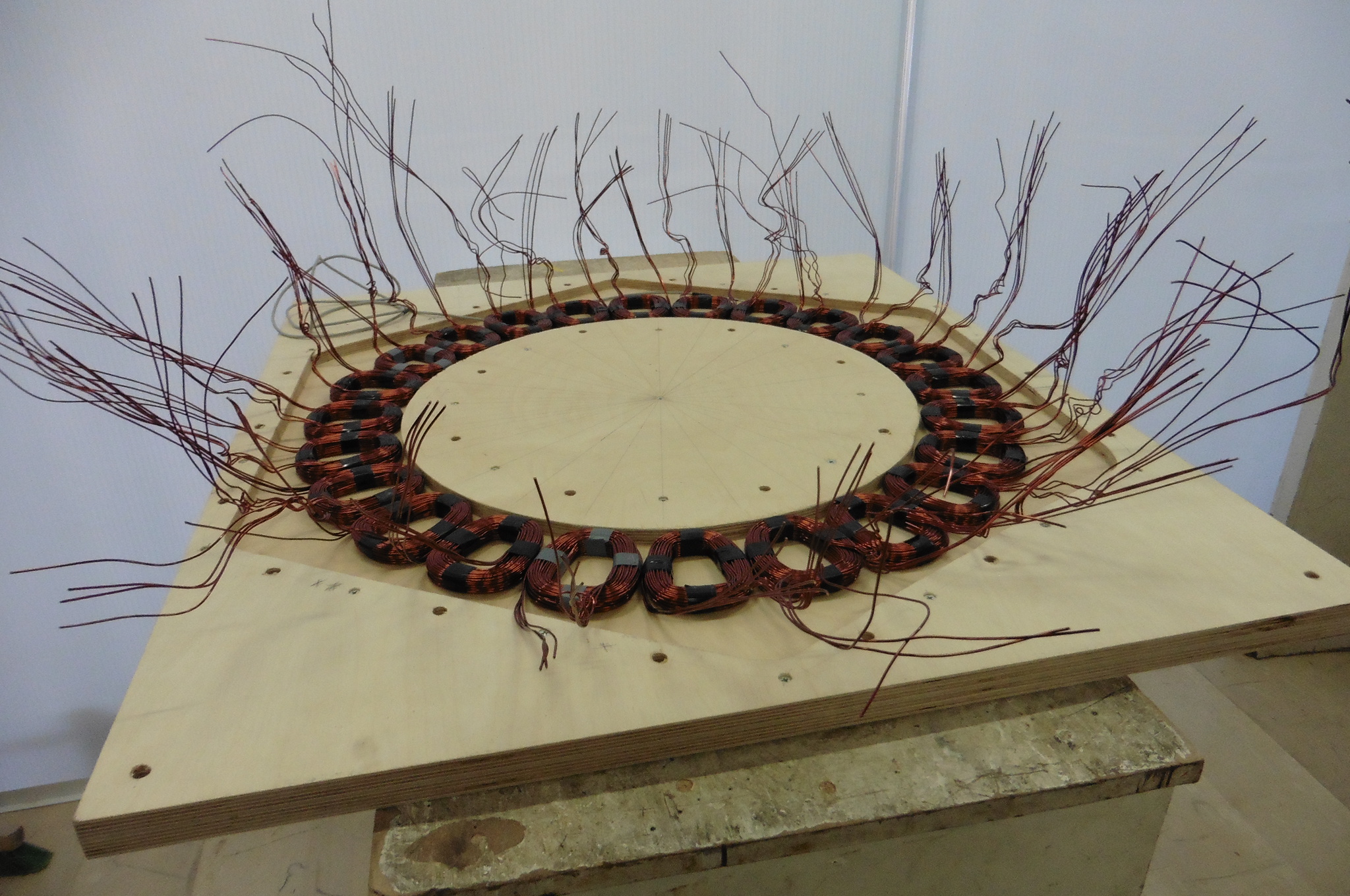

All coils wound, placed in the mould and ready for connecting

The sensor cable going round the coils towards the three power transmission wires of the stator

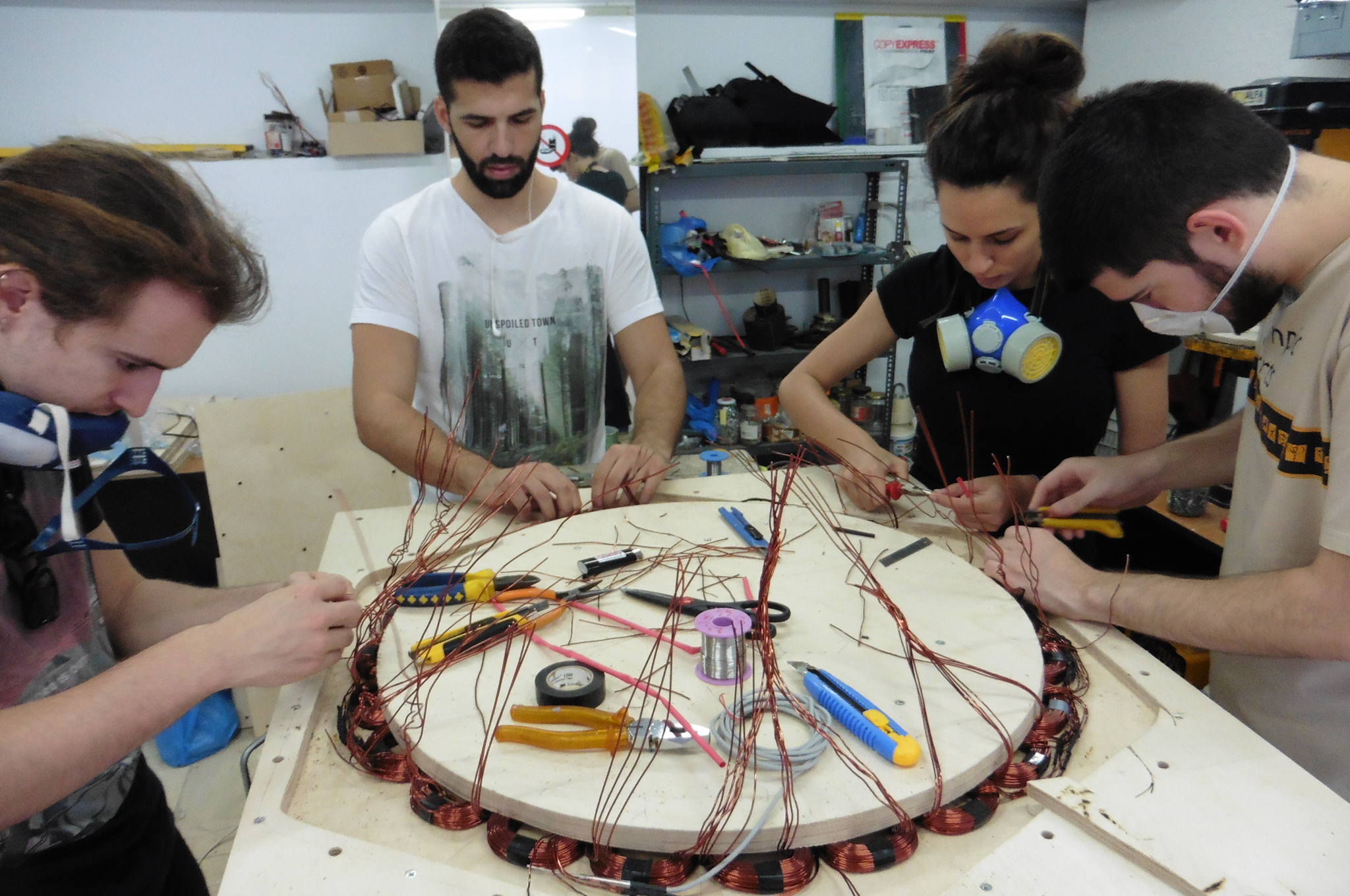

Connecting the coils in three phases and in star connection

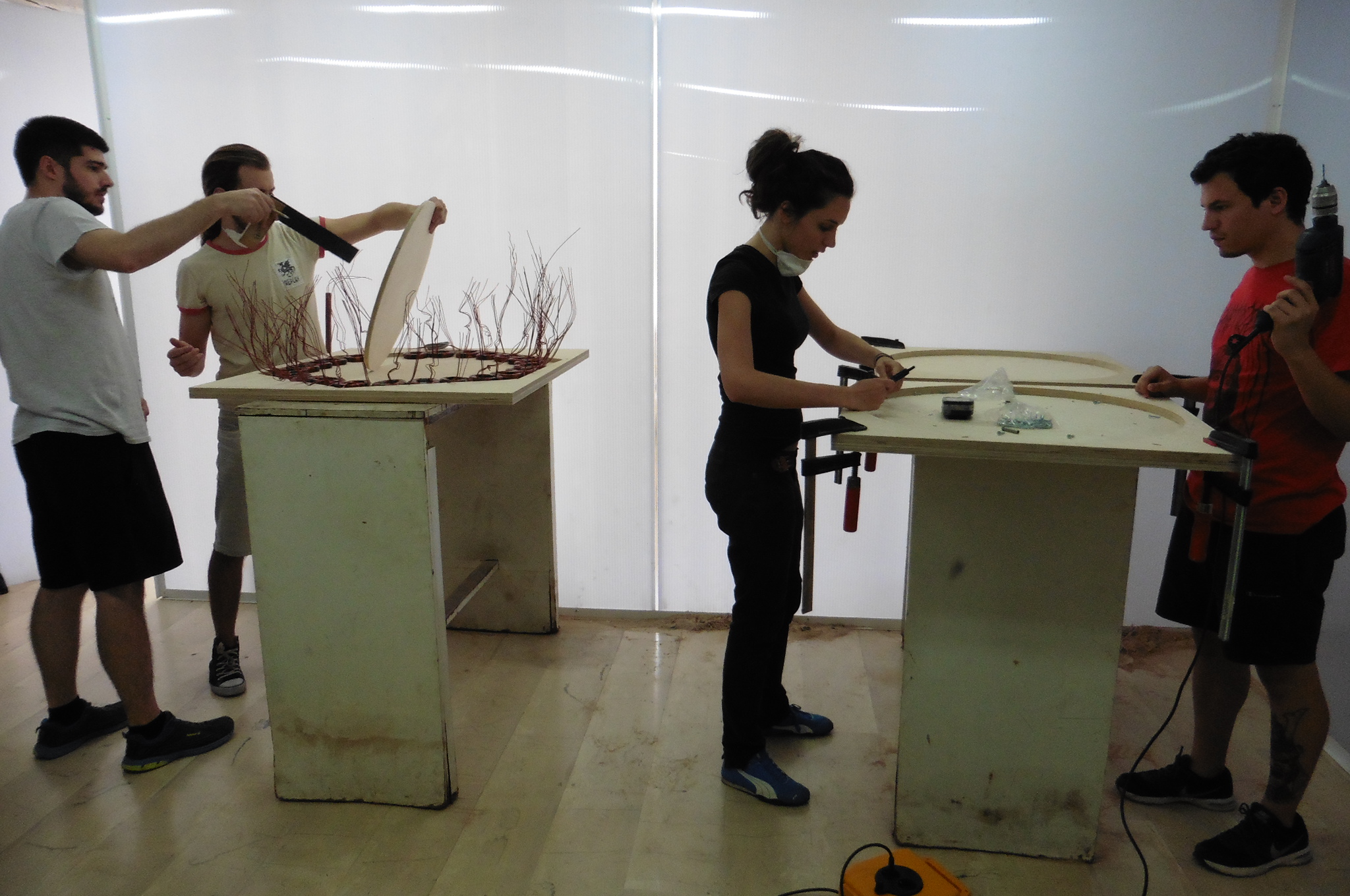

Making the stator and rotor moulds

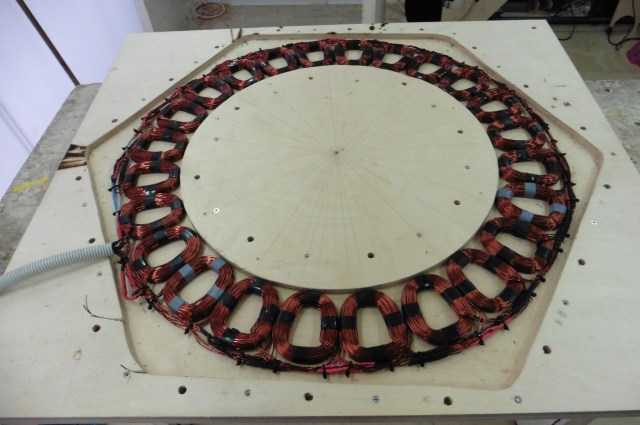

The stator coils connected and ready for casting

Cutting out the magnet jig and making sure that the magnets fit in the holes

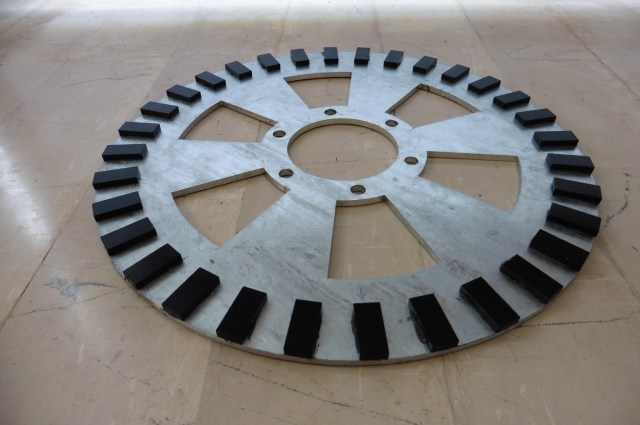

Placing neodymium magnets around the magnet disks

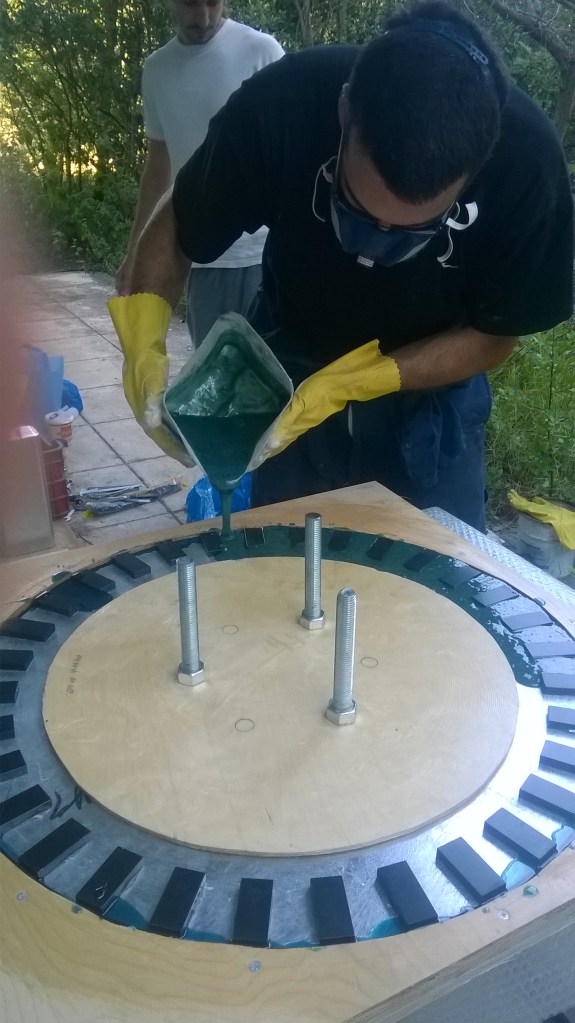

Magnet disk rotor ready for casting

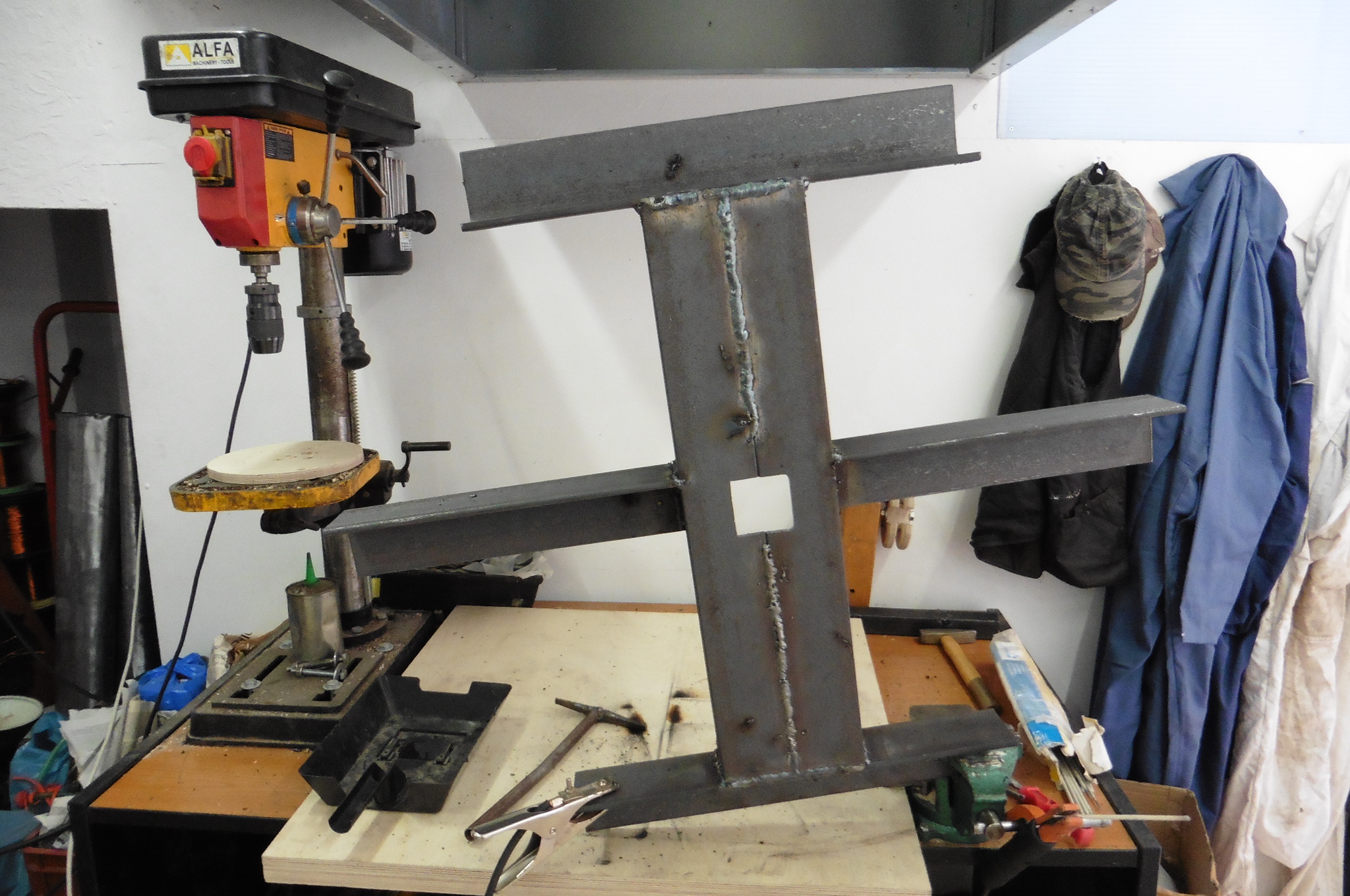

The metal frame which supports the bearing hub and the stator

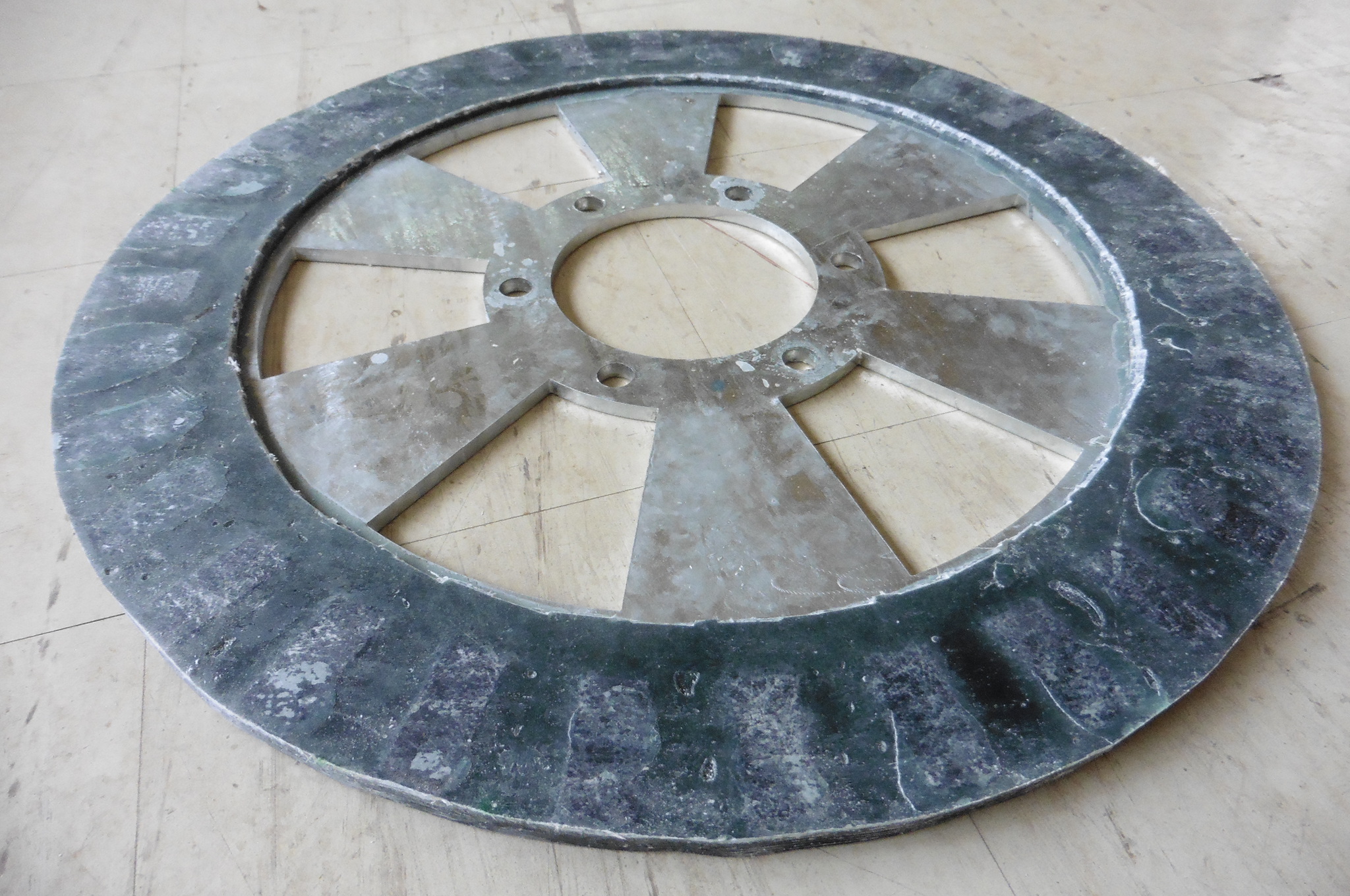

The finished rotor disk ready for assembly

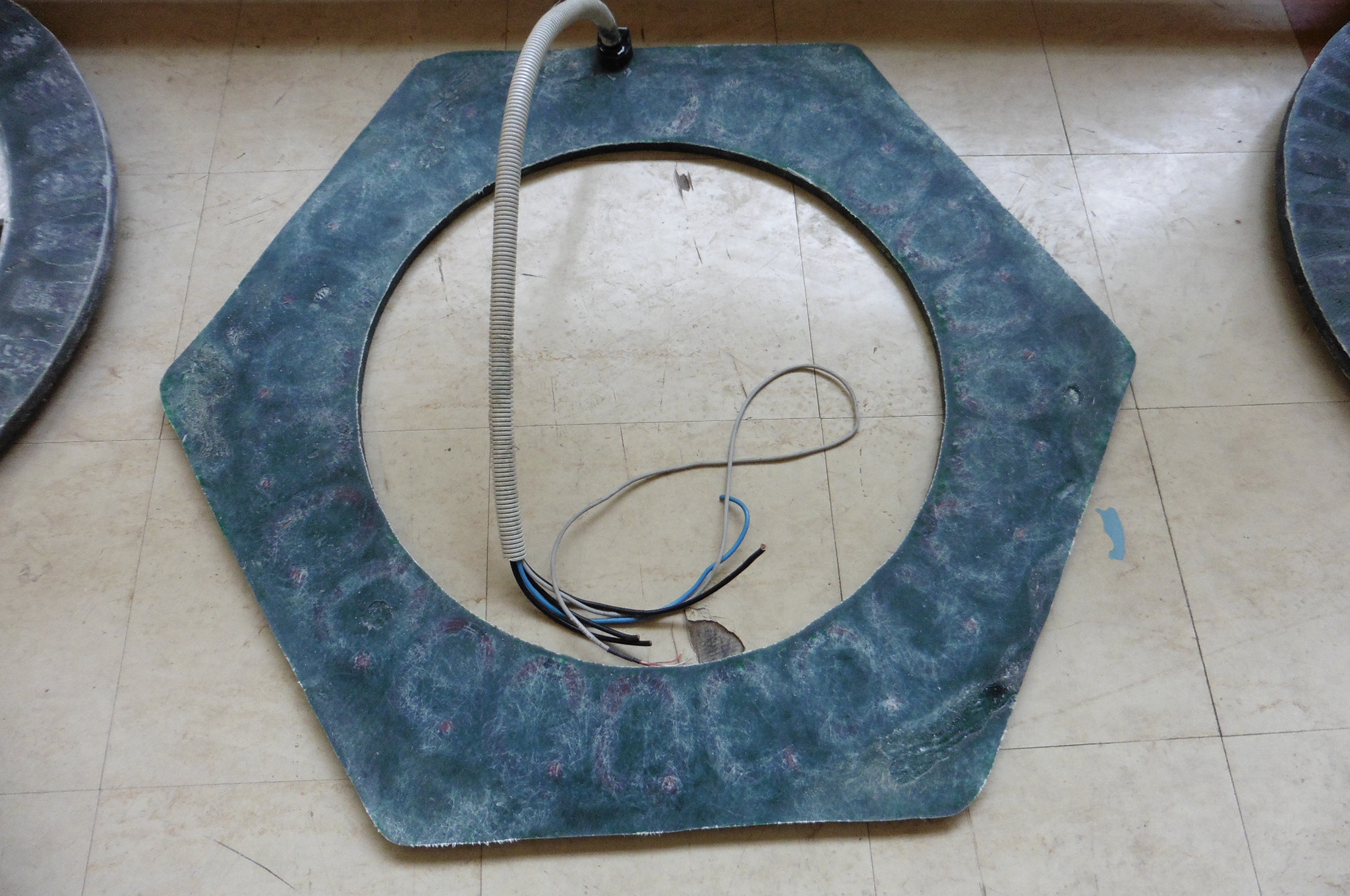

The finished stator ready for assembly

Assembling the generator on the test bench base

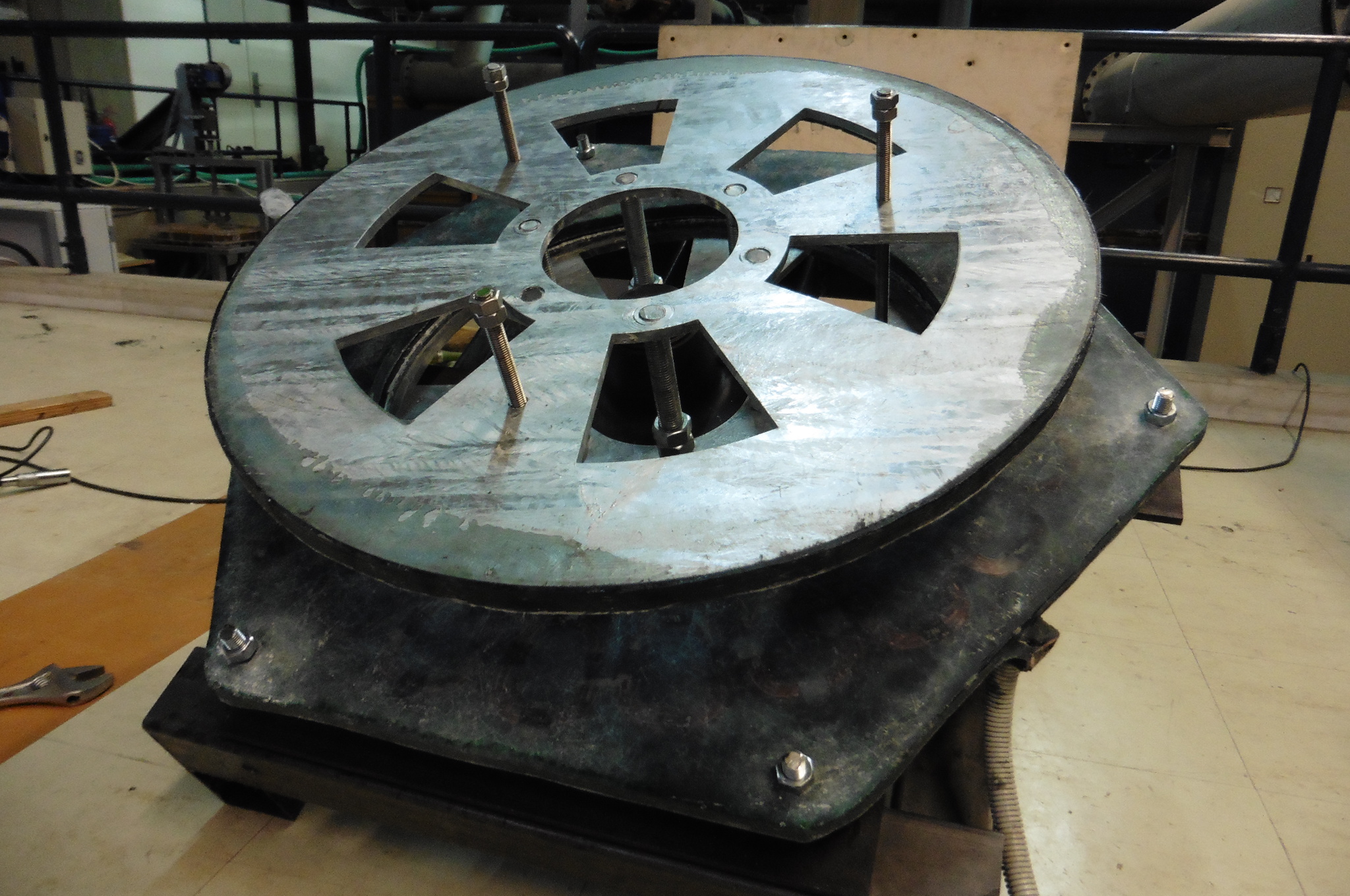

Lowering the front rotor disk with the jacking rods

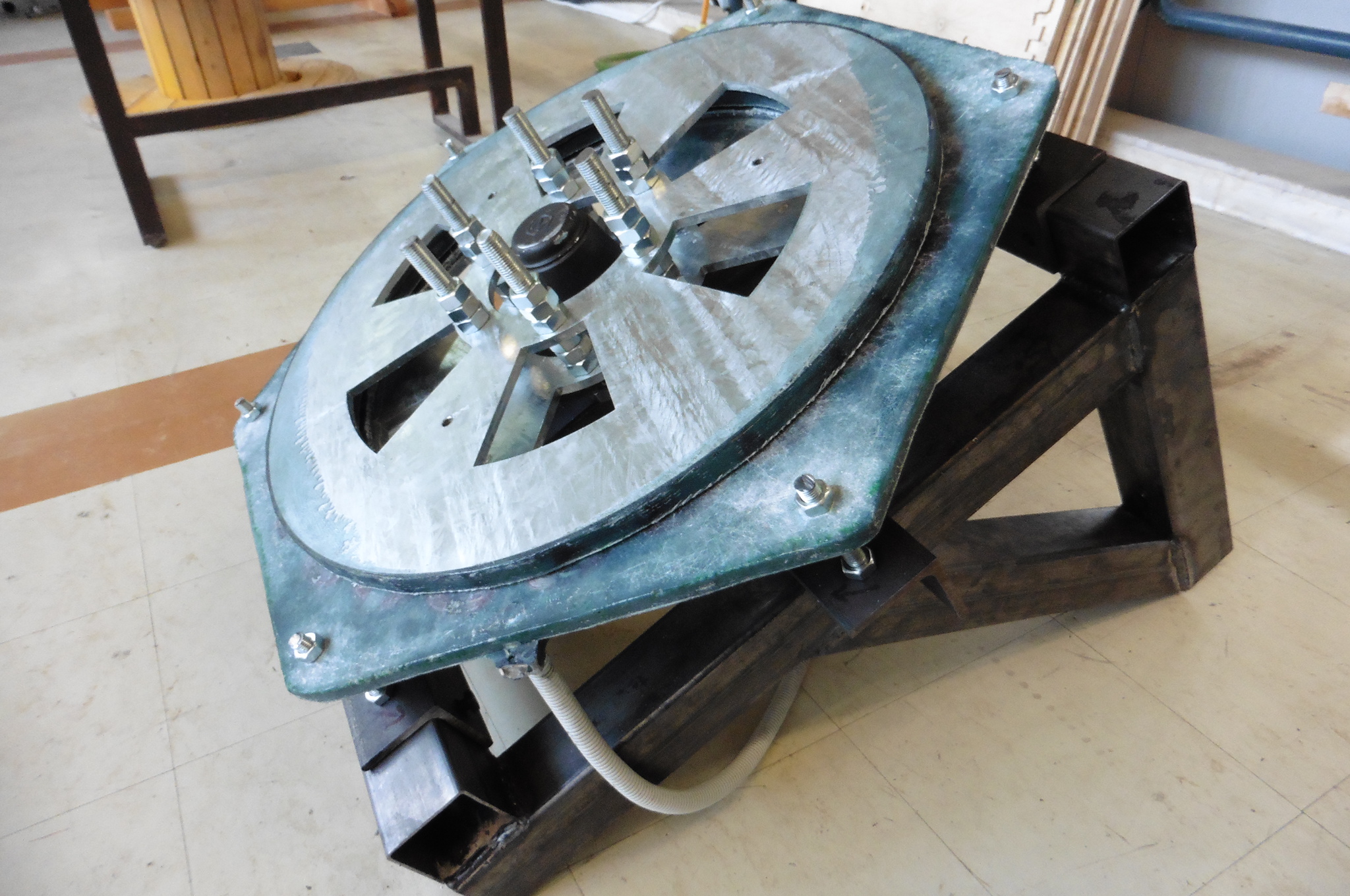

The 5kW generator assembled and fastened on its test bench base

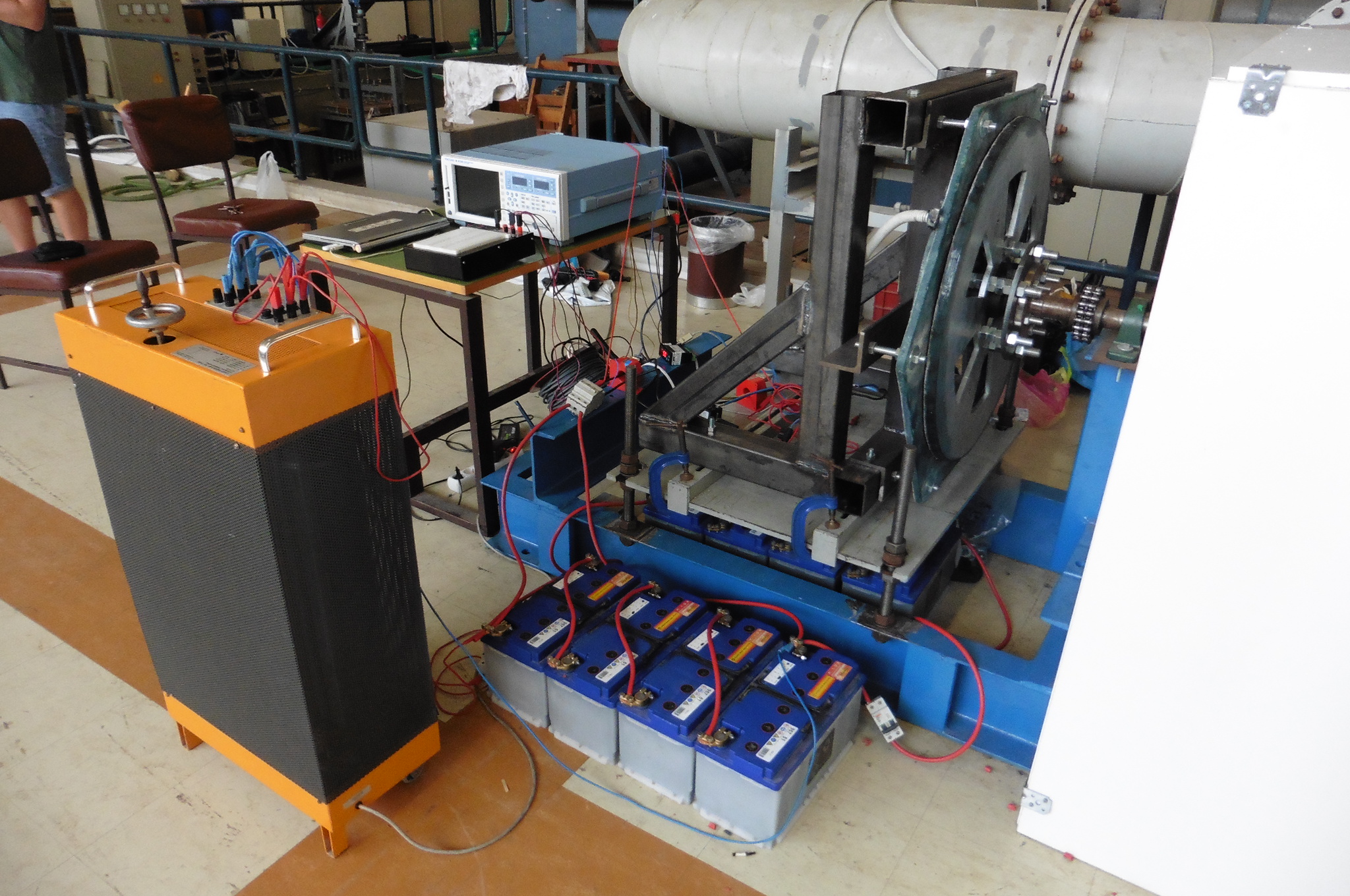

The test bench ready for driving the generator with a DC motor drive while connected to a 48VDC battery bank
